Description
Product Overview
GNP2070TD-ZTR is a 650V GaN HEMT which has achieved the industry's highest class FOM (Ron*Ciss, Ron*Coss). It is a product of the EcoGaN� series that contributes to power conversion efficiency and size reduction by making the best use of low ON resistance and high-speed switching. ESD protection function is built in for high-reliability design. In addition, the highly versatile packages provide excellent heat dissipation and facilitates mounting. Suitable for high switching frequency converter and high density converter applications.
- 650V E-mode GaN HEMT
- 70mohm resistance and 5.2nC gate charge
- 27A Ids, 6.5V Vgs rating
- 0.098ohm drain source on state resistance
- 53A ID,pulse
- 800V transient drain to source voltage
- 8.5V transient gate to source voltage
- 159W power dissipation at Tc= 25°C

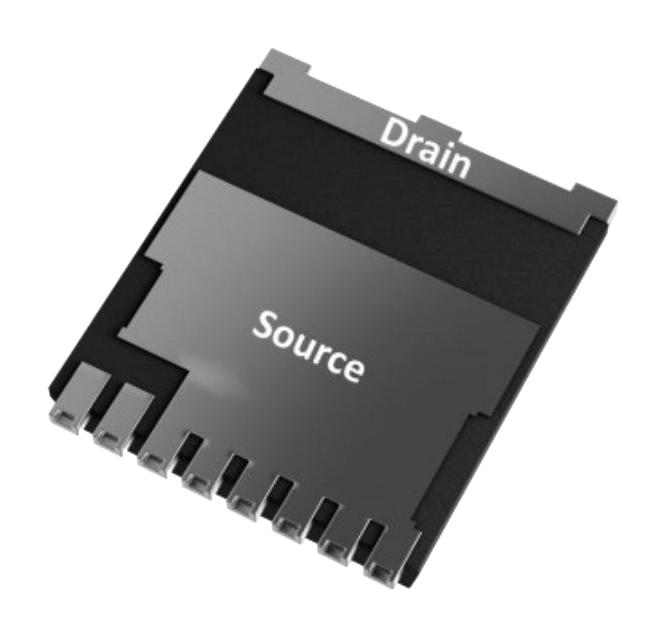

- 8 pin TOLL package, operation temperature Tj range from -55 to 150°C
- Dimension is 11.68mm x 9.9mm x 2.4mm (W (Typ) x D (Typ) x H (Max))
Product details
Other details
| Brand | ROHM |
| Part Number | GNP2070TD-ZTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
