| ₹ 2053.02 includes GST and import duties. | |
| B2B customers can avail ₹ 313.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

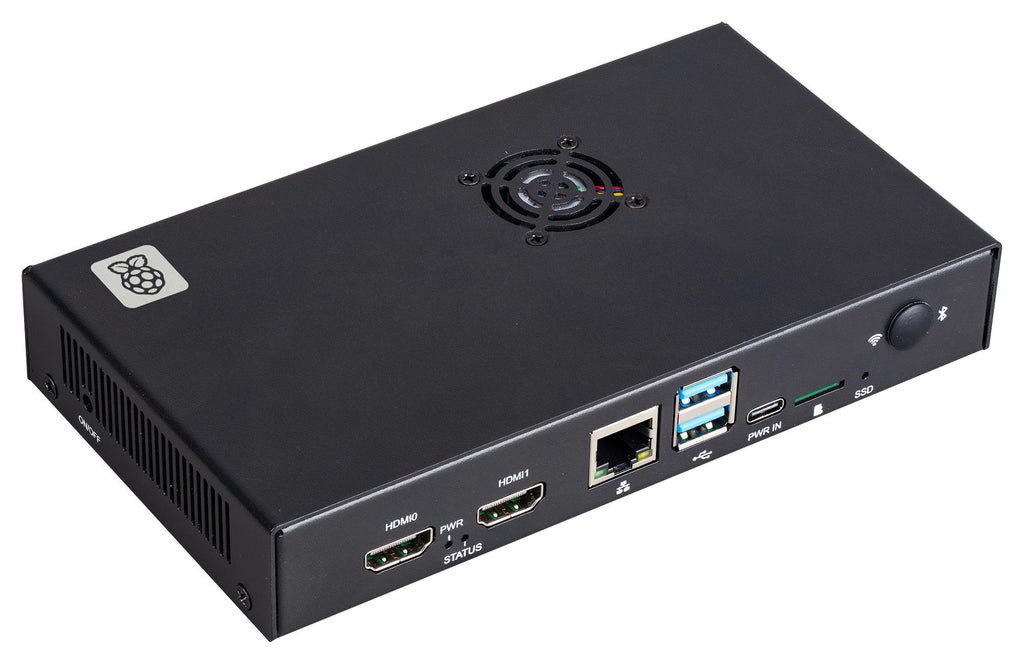

SC1753 is a Raspberry Pi IO case for Raspberry Pi Compute Module 5. It is a high-quality two-piece metal enclosure for Compute Module 5 and the Compute Module 5 IO board. It provides space for accessories connected to the IO Board, such as an M.2 SSD or a PoE+ HAT+. The IO Case includes slots to enable the connection of CSI-2 cameras or DSI displays and includes a built-in controllable fan to support thermal regulation for higher-power applications. Cut-outs in the side of the case allow access to HDMI, Ethernet, USB-A, and USB-C (power in) connectors and to the SD card slot. A mounting hole is provided for an external wireless antenna.
- 170mm?x?94mm x 28mm form factor
- 5V DC (3.5?�?5.5V) supplied via four-pin fan header on a carrier board
- Start voltage is ? 3.5V
- Power consumption is 0.85W
- Rated current is 0.18 ±0.02A
- Fan speed control: pulse width modulation control with tachometer
- Maximum fan speed of 8000RPM ±15% (at 25?, after 3?�?5 minutes rotating)
- Maximum airflow of 2.46CFM
- 21.7dB noise and 150mm cable length
Product details
Other details
| Brand | RASPBERRY-PI |
| Part Number | SC1753 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2011.96 |
| 3-5 | ₹ 1991.43 |
| 5-10 | ₹ 1950.37 |
| 10+ | ₹ 1909.31 |
Bulk discount will be automatically applied during checkout based on quantity.
