Description
Product Overview

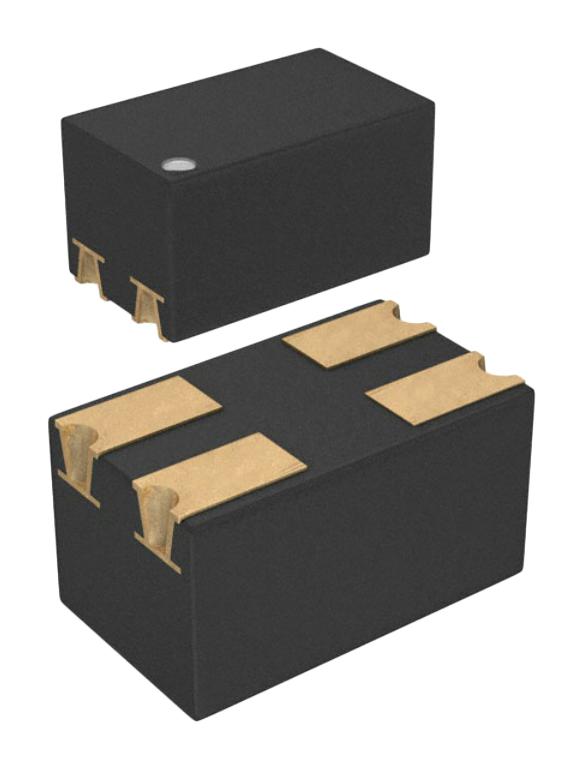

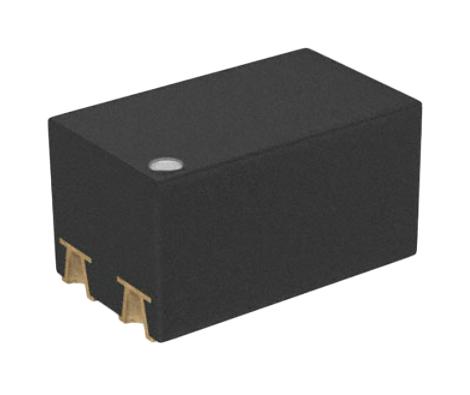

G3VM-61QR is a MOSFET relay with low output capacitance and low ON resistance. Application examples include semiconductor test equipment, test & measurement equipment, communication equipment, data loggers.
- Low C × R = 13.2pF·ohm, COFF (standard) = 12pF
- 60V load voltage, 1a (SPST-NO) contact form
- 400mA continuous load current
- Input LED forward voltage is 1.21V typ (IF=10mA, Ta = 25°C)
- Maximum resistance with output ON is 1.1ohm typ (IF=5mA, t<1s, Ta = 25°C)
- Capacity between I/O terminals is 0.9pF typ (f=1MHz, VS=0V, Ta = 25°C)
- Turn-ON time is 0.5ms MAX (IF=5mA, RL=200 ohm, VDD=20V, Ta = 25°C)
- Turn-OFF time is 0.03ms max (IF=5mA, RL=200 ohm, VDD=20V, Ta = 25°C)
- Surface-mounting terminals
- S-VSON4 package, ambient operating temperature range from -40 to +110°C
Product details
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G3VM-61QR |
| Quantity | Each |
| Technical Data Sheet EN |  |
