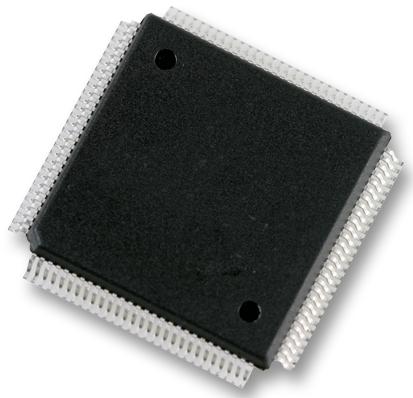

NXP MC9S12XDP512CAL 16 Bit Microcontroller, HCS12X Family S12XD Series Microcontrollers, HCS12X, 16 bit, 40 MHz, 512 KB

The MC9S12XDP512CAL is a 16-bit Microcontroller based on enhanced HCS12X CPU (40MHz bus) with CISC architecture operates at a maximum frequency of 80MHz. The device incorporates 512kB internal flash, 32kB internal RAM, 4kB EEPROM, 16-channel 10-bit A/D converter and 91 general-purpose I/O pins. This device also features peripherals like one inter-integrated circuit (IIC) bus module, five multi-scalable controller area networks (MSCAN) CAN 2.0 A/B software compatible modules, six serial communications interface (SCI) and three serial peripheral interface modules (SPI). The MC9S12XD family features the performance boosting XGATE co-processor. The XGATE, which is programmable in C language, has an instruction set which is optimized for data movement, logic and bit manipulation instructions. It runs at twice the bus frequency of the S12X and off-loads the CPU by providing high speed data transfer between any peripheral module, RAM and I/O ports.

• Upward compatible with MC9S12 instruction set
• Interrupt stacking and programmer's model identical to MC9S12
• Instruction queue
• Enhanced indexed addressing
• Enhanced instruction set
• External bus interface (EBI)
• Module mapping control (MMC)
• Interrupt controller (INT)
• Debug module to monitor HCS12X CPU and XGATE bus activity
• Background debug mode (BDM)
• Periodic interrupt timer (PIT)
• Clock and reset generator (CRG)
• Low noise/low power Pierce oscillator
• Enhanced capture timer - 16-bit main counter with 7-bit prescaler
• 8 PWM (pulse-width modulator) channels
• On-chip voltage regulator
• Low-voltage detect (LVD) with low-voltage interrupt (LVI)
• Power-on reset (POR) circuit
• Low-voltage reset (LVR)
• Ultra low-power wake-up timer

Applications

Industrial

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
