Description
Product Overview

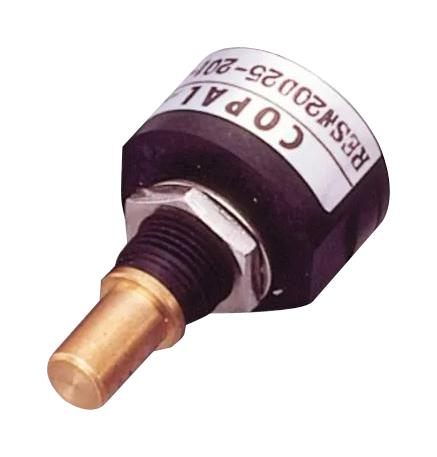

RESW20D-50-201-1 is a manual setting type optical encoder.
- Compact, light weight
- Contactless, manual adjustment only
- 50 (P/R) resolution, square wave output waveform
- Cable wire output terminal, without click, panel seal (with o-ring)
- 20mm size
- 5VDC ±5% input voltage, 50mA maximum input current
- 200Hz maximum frequency response
- IP40 protection grade
- 0 to 50°C operating temperature range
- 3mA maximum output sink current
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | RESW20D-50-201-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
