Description
Product Overview

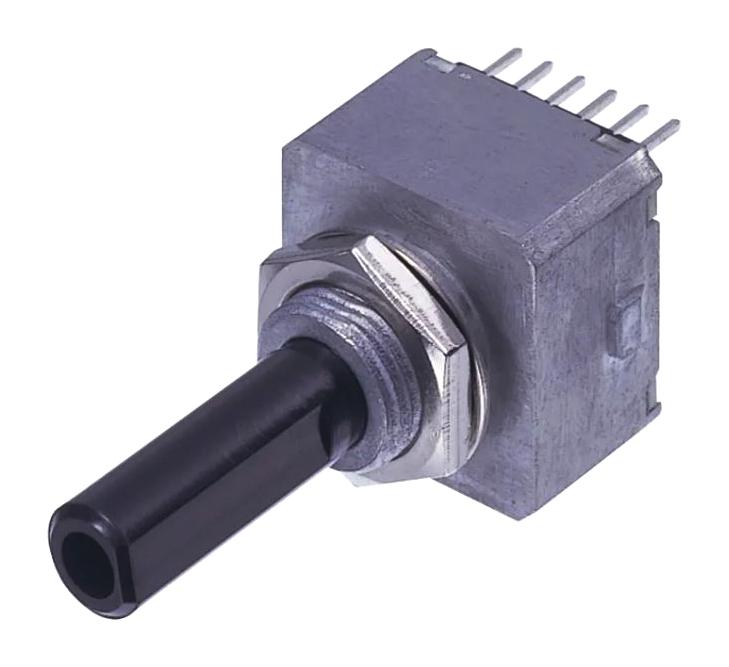

REC16A25-201-C is a manual setting type optical encoder.
- High resistant to electrostatic noise by using a plastic shaft
- Compact size of 16mm square, long life
- 25 (P/R) resolution
- With push switch function, snap-in holder, with click
- 5VDC ±5% input voltage, 30mA maximum input current
- Square wave output waveform
- 100Hz maximum frequency response, IP40 protection grade
- 3mA maximum output sink current
- 200mohm maximum (initial value) contact resistance
- 0 to 50°C operating temperature range
Product details
Other details
| Brand | NIDEC COMPONENTS |
| Part Number | REC16A25-201-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
