Description

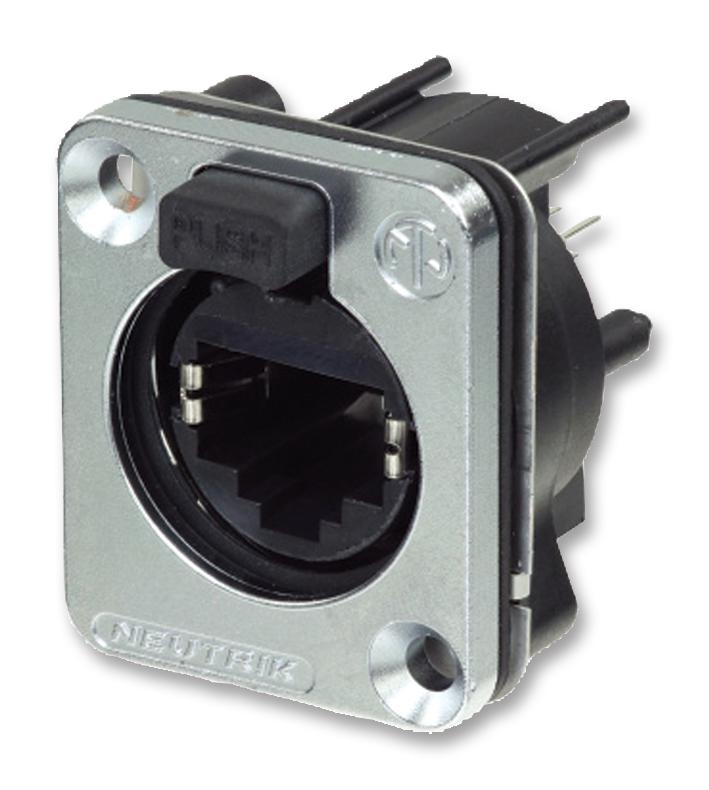

The NE8FDV-SE from Neutrik is an etherCON receptacle chassis connector. It is a vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD with a maximum panel thickness of 4mm. The etherCON receptacle chassis connector is a ruggedized and lockable RJ45 connector system optimized for pro audio, video and lightning network applications. This chassis connector is shaped to fit into standardized panels out of the entertainment industry.
- In combination with NE8MC-1 waterproof according to IP54
- Accommodates NE8MC* or any standard RJ45 plug
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Approved latch lock system
- Mountable from the front of the panel
- Ground panel connection
- Bronze with silver contacts and zinc die-cast with chromium plating shell
- Rated voltage is 50V, rated current per contact is 1.5A
- Frequency range from 1MHz to 100MHz
- Flammability rating meets UL94V-0
Communications & Networking, Industrial
ContentsChassis connector, Mounting screws.
Footnotes This product does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.Other details
| Brand | NEUTRIK |
| Part Number | NE8FDV-SE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
