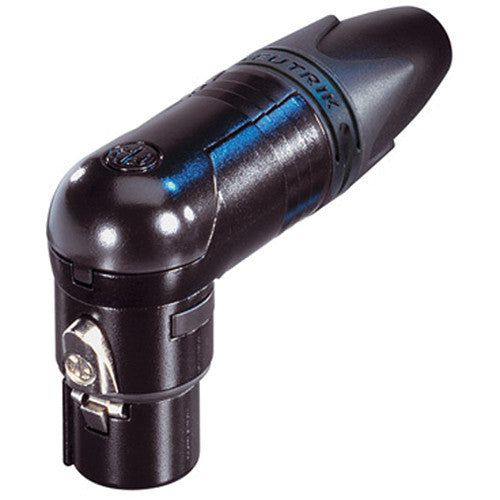

The Neutrik NC3FRX-B 3-Pole Right-Angle XLR Female Cable Connector from the RX series is the right-angle version of the XX cable-connector series. This cable connector offers features that make it reliable and easy to assemble. It improves contact integrity as well cable strain relief.
- Slim right-angled connector
- 5 selectable cable-outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact-mating area
- Female connector with improved solid metal latch that is large and easy to handle
- Additional ground-spring contacts for better shell-ground continuity
- Improved chuck-type strain relief provides high pull-out force and makes assembly easy and fast
- Boot with polyurethane gland gives high protection to cable-bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design makes it valuable and handy
| Electrical |
| Capacitance | Between Contacts: ?4 pF |
| Contact Resistance | Inner: ?3 mOhms |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | Initial: >2 GOhms |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Mechanical |
| Cable | OD (Outer Diameter): 0.14 x 0.32" (3.5 to 8 mm) |
| Insertion Force | ?20 N |
| Withdrawal Force | ?20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 0.1 sq. in (2.5 sq. mm)
14 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Material |
| Boot | Polyurethane |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm N |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Zinc die-cast (ZnAl4Cu1) / Ck 67 (spring) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Environmental |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Dimensions | 2.87 x 1.61 x 0.62" (72.9 x 41 x 15.8 mm) |
| Packaging Info |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 3.3 x 3.0 x 0.9" |
In the Box
Neutrik NC3FRX-B 3-Pole Right-Angle XLR Female Cable Connector
