Description
Product Overview

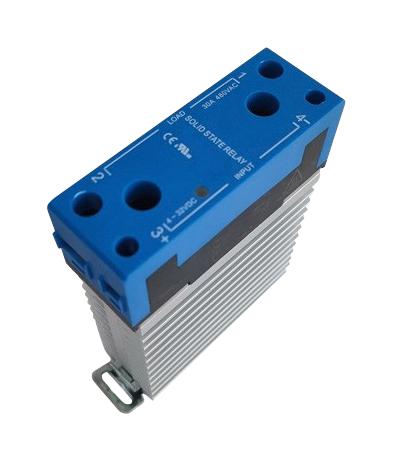

MPKSV240D10-L is a solid state relay with integrated heatsink. It is suitable for temperature chamber, injection moulding machine, packaging machine, and etc.
- Built-in RC snubber circuit, DIN rail mounting
- Dielectric strength is 4000Vrms
- 35mm rail DIN(EN50022), LED indicator, zero crossing switching mode
- Control voltage range from 4VDC to 32VDC (DC control), 90VAC to 280VAC (AC control)
- Maximum input current is 25mA (32VDC) (DC control), 25mA (at 280VAC/50Hz) (AC control)
- Load voltage is 240VAC, (24VAC to 280VAC), 480VAC, (24VAC to 530VAC), 600VAC, (24VAC to 660VAC)
- Load current is 10A
- Minimum insulation resistance is 1000Mohm (at 500VDC)
- Ambient temperature range from -30°C to +80°C
- Maximum turn-off time is 10ms (DC control)
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPKSV240D10-L |
| Quantity | Each |
| Technical Data Sheet EN |  |
