Description
Product Overview

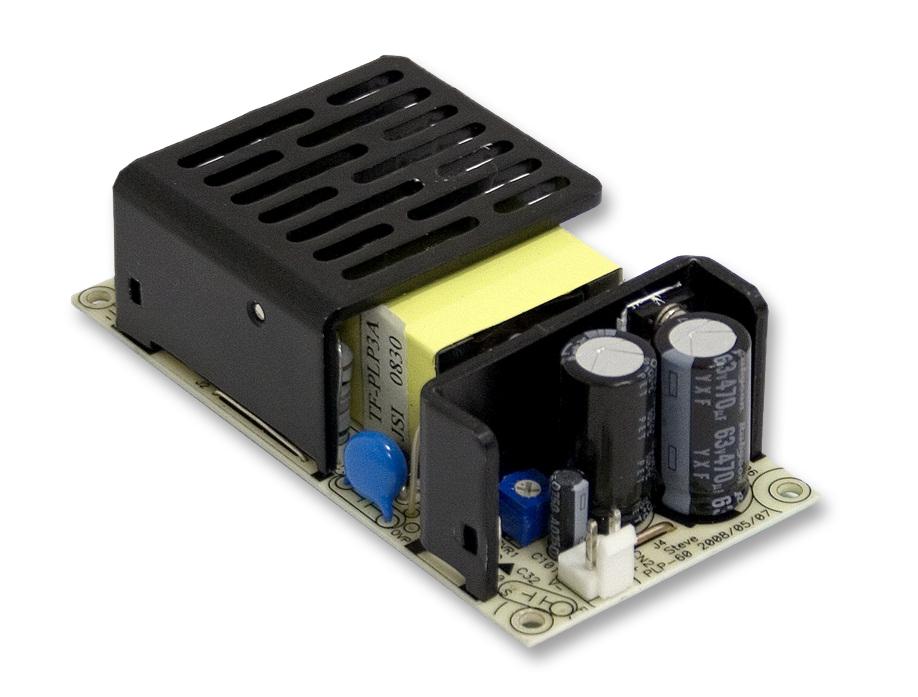

PLP-60-12 is a PLP-60 series single output LED power supply. Safety standards are GB19510.1, GB19510.14,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08, EAC TP TC 004 approved, design refer to UL60950-1.
- Universal AC input / full range, cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage
- Built-in active PFC function, class 2 power unit
- Output current level adjustable, 100% full load burn-in test
- High reliability, 2 years warranty
- Suitable for built-in applications of LED lighting
- 12VDC output voltage, 60W rated output power, 84% typical efficiency
- Input voltage rating is 90 ~ 264VAC/127 ~ 370VDC
- Working temperature range from -30 to +70?
- Dimension (L x W x H) is 101.6 x 50.8 x 29.6mm
Product details
Other details
| Brand | MEAN WELL |
| Part Number | PLP-60-12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
