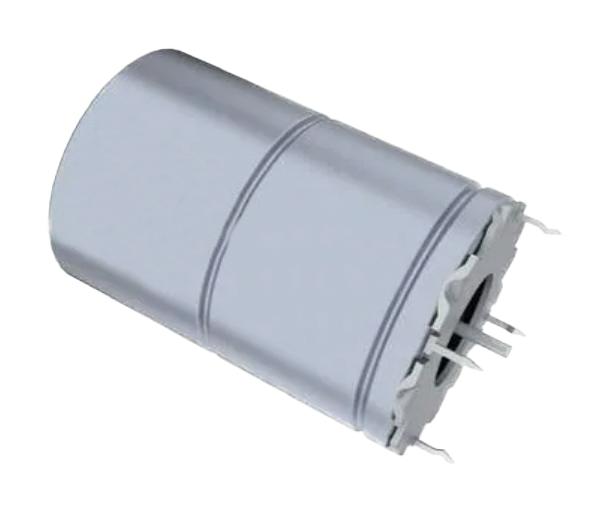

KEMET PHH227JML4290ME4 Hybrid Aluminium Electrolytic Capacitor, Vibration-Proof, 2900 µF, ± 20%, 35 V, Radial Leaded

PHH227JML4290ME4 is a PHH227 series high CV conductive polymer hybrid capacitor with outstanding electrical performance. This capacitor contains a radial crown, which allows them to be mounted in a standing position. The device has a polarized all-welded design, tinned copper wire leads, and a negative pole connected to the case. The PHH227 winding is housed in a cylindrical aluminium can with a high purity aluminium lid and high-quality rubber gasket. Low ESR is conditioned by a highly conductive polymer (PEDOT/PSS) and an all-welded design. The polymer system creates an electrical pathway between the anodic oxide layer and the cathode through a mechanical separator - paper. The PHH227 winding is impregnated with liquid electrolyte that results to self-healing features of the capacitor. DUE to its mechanical robustness, the PHH227 is suitable for use in mobile, automotive and aircraft installations with operation up to +125°C.

• Capacitance value is 2900µF with ±20% tolerance
• Voltage(VDC) is 35V
• ESR is 5.1mohm
• 20x27 size (D x L)
• High temperature capability up to 140°C
• Extremely high ripple current
• High vibration resistance up to 20g 22h/axis
• Polarized all-welded design
• Outstanding electrical performance
• Operating temperature range from -40 to +125°C
