Description
Product Overview

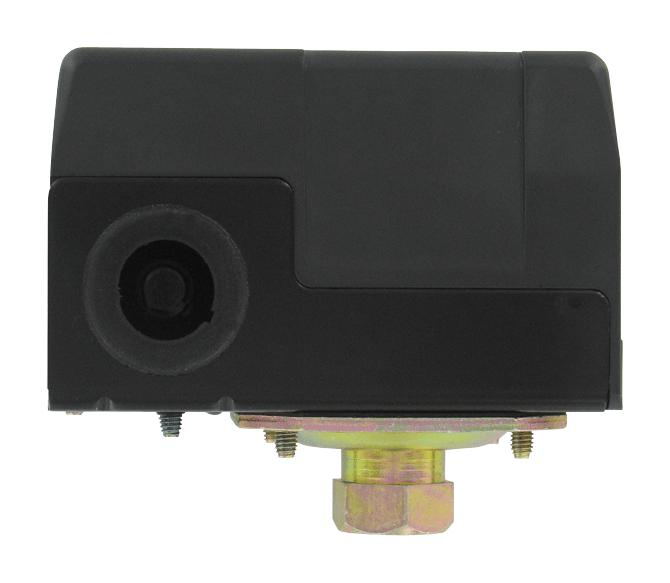

CXA-S3 is a series CXA water pump pressure switch for controlling automatic water systems. This switch is very popular for use on water well pumps and pumping systems. The set point and dead-band are both easily adjustable via screws inside the cover. The series CXA�s simple design makes it a great switch for an installer at any skill level. Typical applications include electric water pumps, water system applications, well pumps and pumping systems.
- Range from 35 to 150psig (2.4 to 10.3bar)
- Approximately adjustable deadband 30-40psig (2.1-2.8bar), maximum pressure 204psig (14.1bar)
- Compatible liquids and gases
- General purpose enclosure rating
- DPST snap action, NC switch
- Screw terminal electrical connection
- 7/8? hole for 1/2? conduit hub
- 1/4? female NPT process connection
- Switch can be installed in any position
- Set point and deadband are both easily adjustable reducing time to install and operation
Product details
Other details
| Brand | DWYER |
| Part Number | CXA-S3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
