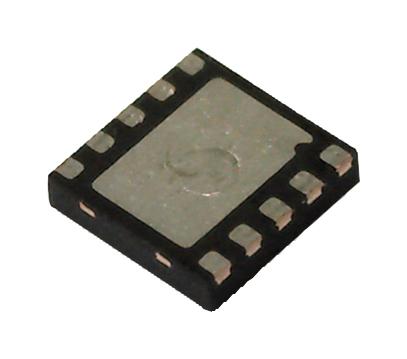

ANALOG DEVICES LTC3411IDD#PBF DC-DC Switching Synchronous Buck Regulator, Adjustable, 2.63 to 5.5V in, 0.8 to 5V/1.25A Out, DFN-10

LTC3411IDD#PBF is a constant frequency, synchronous, step-down DC/DC converter. The output voltage is adjustable from 0.8V to 5V. Internal synchronous 0.11ohm power switches with 1.6A peak current ratings provide high efficiency. The LTC3411�s current mode architecture and external compensation allow the transient response to be optimized over a wide range of loads and output capacitors. The LTC3411 can be configured for automatic power-saving Burst Mode operation to reduce gate charge losses when the load current drops below the level required for continuous operation. For reduced noise and RF interference, the SYNC/MODE pin can be configured to skip pulses or provide forced continuous operation. To further maximize battery life, the P-channel MOSFET is turned on continuously in dropout (100% duty cycle) with a low quiescent current of 60?A. Applications include notebook computers, digital cameras, cellular phones, handheld instruments, board mounted power supplies.

• High efficiency up to 95%, stable with ceramic capacitors
• Current mode operation for excellent line and load transient response
• Short-circuit protected, low dropout operation: 100% duty cycle
• Output voltages from 0.8V to 5V, synchronizable to external clock
• Selectable Burst Mode® operation, peak switch current limit is 2A typ at (ITH = 1.3, TA = 25°C)
• Oscillator frequency is 1MHz typical at (RT = 324K, TA = 25°C)
• Switch leakage current is 0.01µA typical at (VIN = 6V, VITH/RUN = 0V, VFB = 0V, TA = 25°C)
• Active mode input DC supply current is 240?A typical at (VFB = 0.75V, SYNC/MODE = 3.3V)
• Top switch on-resistance is 0.11 ohm typical at (VIN = 3.3V, TA = 25°C)
• Operating temperature range from -40°C to 125°C, 10-lead plastic DFN package
