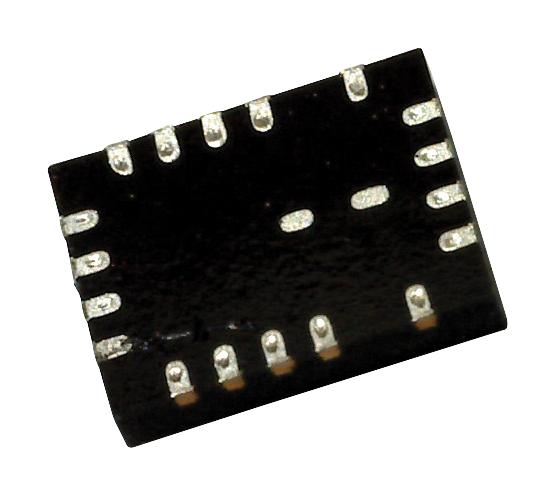

ANALOG DEVICES LT8640IUDCF#PBF DC-DC Switching Synchronous Buck Regulator, Adjustable, 2.9 to 42V in, 0.97V / 5A Out, WFQFN-EP-18

LT8640IUDCF#PBF is a step-down regulator that features a Silent Switcher® architecture designed to minimize EMI emissions while delivering high efficiency at frequencies up to 3MHz. An ultralow 2.5µA quiescent current with the output in full regulation enables applications requiring the highest efficiency at very small load currents. It allows high VIN to low VOUT conversion at high frequency with a fast minimum top switch on-time of 30ns. The SYNC/MODE pin selects between Burst Mode operation, spread spectrum mode, synchronization to an external clock, and either pulse-skipping mode. It is used in applications such as automotive and industrial supplies, general purpose step-down, GSM power supplies.

• Silent Switcher® architecture, ultralow EMI emissions, spread spectrum frequency modulation
• Wide input voltage range from 3.4V to 42V, peak current mode operation
• Output soft-start and tracking, safely tolerates inductor saturation in overload, internal VC COMP
• VIN quiescent current is 0.75µA typical at (TA = 25°C, VEN/UV = 0V)
• Oscillator frequency is 210KHz typical at (RT = 221k)
• Minimum on-time is 35ns typical at (ILOAD = 1.5A, SYNC = 0V)
• Feedback pin input current is 20nA maximum at (VFB = 1V, TA = 25°C)
• PG pull-down resistance is 700 ohm typical at (VPG = 0.1V)
• Feedback reference voltage is 0.970V typical at (VIN = 6V, ILOAD = 0.5A, TA = 25°C)
• Operating temperature range from -40°C to 125°C, 18-lead plastic side wettable QFN package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
