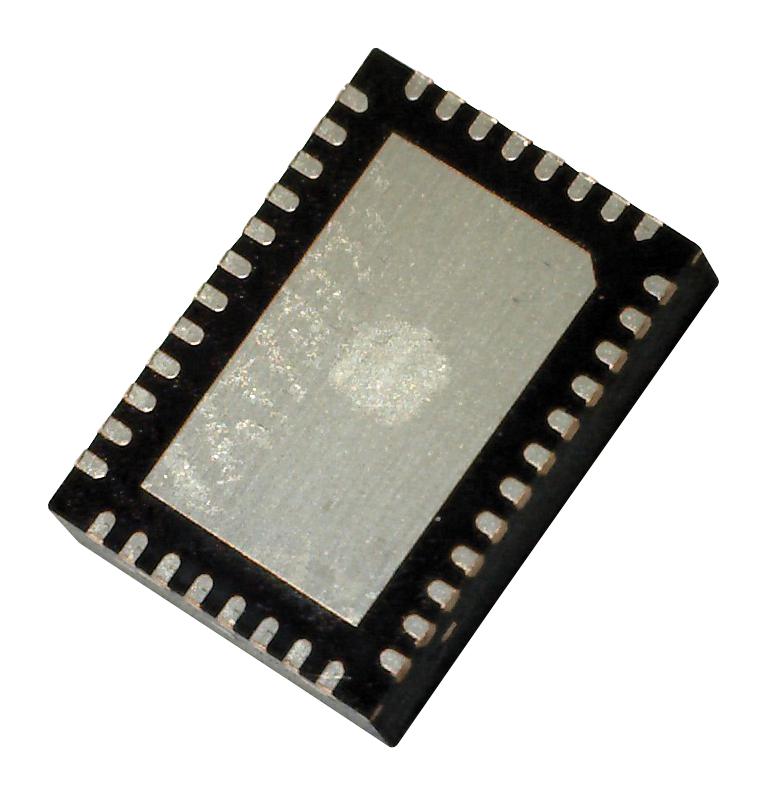

ANALOG DEVICES LT8602EUJ#PBF DC/DC Switching Regulator, Synchronous Buck, 4 O/P, 3 to 42V in, 1.5/2.5A out, QFN-EP-40

LT8602 is a quad channel, current mode, monolithic buck switching regulator with a programmable power-on reset. This device can be configured for micropower Burst Mode operation or pulse-skipping operation at light load. The high voltage channels are synchronous buck regulators that operate from an input of 3V to 42V. Internal synchronous power switches provide high efficiency with output currents upto 1.8A. This device uses a 2-phase clock with channels 1 and 3 operating 180° from channels 2 and 4 to reduce input ripple current on both HV and LV inputs. All channels have cycle-by-cycle current limit, providing protection against shorted outputs. Thermal shutdown provides additional protection. It is widely used in application such as automotive systems, distributed supply regulation, industrial controls and power supplies.

• Switching Frequency range is 250KHz to 2.2MHz
• Programmable power-on reset, power good indicators
• Output ripple is 15mV
• Operating quiescent current is 30µA typical
• Output currents upto 1.8A and 94% efficiency
• Input voltage range is 2.6V to 5.5V
• Flexible power supply system providing four outputs with a wide input range
• Operating temperature is -40°C to 125°C
• Package style is 40-lead plastic QFN
