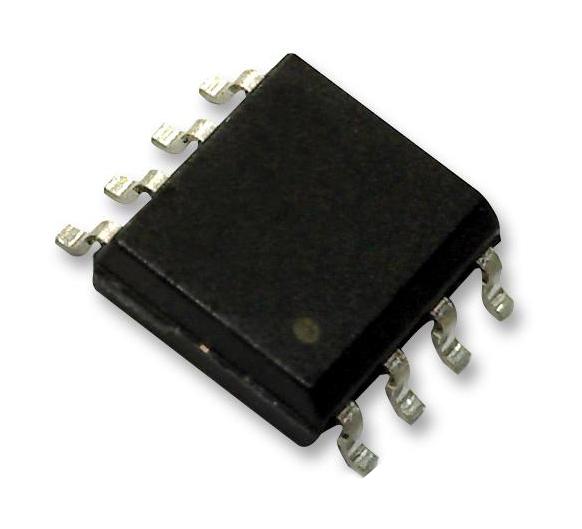

ANALOG DEVICES LT1054IS8#PBF DC/DC Charge Pump Voltage Converter, Adjustable, 3.5 to 15V in, 0.1A out, NSOIC-8

LT1054 is a monolithic, bipolar, switched-capacitor voltage converter and regulator. This device provides higher output current than previously available converters with significantly lower voltage losses. An adaptive switch driver scheme optimizes efficiency over a wide range of output currents. It also provides regulation, a feature not previously available in switched-capacitor voltage converters. By adding an external resistive divider a regulated output can be obtained. This output will be regulated against changes in both input voltage and output current. The internal oscillator of the device runs at a nominal frequency of 25kHz. The oscillator pin can be used to adjust the switching frequency or to externally synchronize the device. It is widely used in application such as n voltage inverter, voltage regulator, negative voltage doubler, positive voltage doubler etc.

• Output current is 100mA
• Reference and error amplifier for regulation
• Low loss: 1.1V at 100mA
• Operating voltage is 3.5V to 15V
• External shutdown, external oscillator synchronization
• Pin compatible with the LTC®1044/ICL7660
• Operating temperature is �40°C to 100°C
• Packaging style is 8-lead plastic SO
