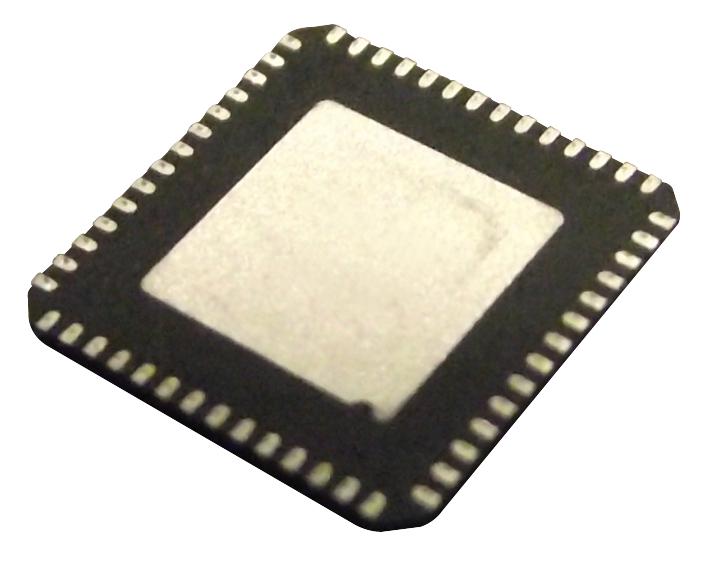

ANALOG DEVICES ADUC845BCPZ62-5 8 Bit MCU, ADUC Family ADUC8 Series Microcontrollers, 8052, 12.58 MHz, 62 KB, 56 Pins, LFCSP-EP

ADUC845 is a micro converter® multichannel ADC. It include additional analogue inputs for applications requiring more ADC channels. It is a complete smart transducer front ends. It integrates high resolution ?-? ADC with flexible, upto 10-channel, input multiplexing, a fast 8-bit MCU, and program and data Flash/EE memory on a single chip. The devices operate from a 32kHz crystal with an on-chip PLL generating a high frequency clock of 12.58MHz. It is widely used in application such as multichannel sensor monitoring, industrial/environmental instrumentation, weigh scales, pressure sensors, temperature monitoring, portable instrumentation, battery-powered systems, data logging, precision system monitoring etc.

• 2 independent 24-bit ADCs on the device
• No missing codes is 24-bit, 22-bit rms (19.5 bit p-p) effective resolution
• Offset drift is 10nV/°C, gain drift is 0.5ppm/°C chop enabled
• 4-kbyte on-chip Flash/EE data memory Flash/EE, 100-year retention, 100kcycle endurance
• 3 levels of Flash/EE program memory security, high speed user download (5sec)
• Internal power-on reset circuit, 12-bit voltage output DAC
• On-chip temperature sensor, dual excitation current sources (200?A)
• 62Kbyte, 5V operation
• Operating temperature range is ?40°C to +85°C
• Packaging style is 56-lead LFCSP

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
