Description
Product Overview

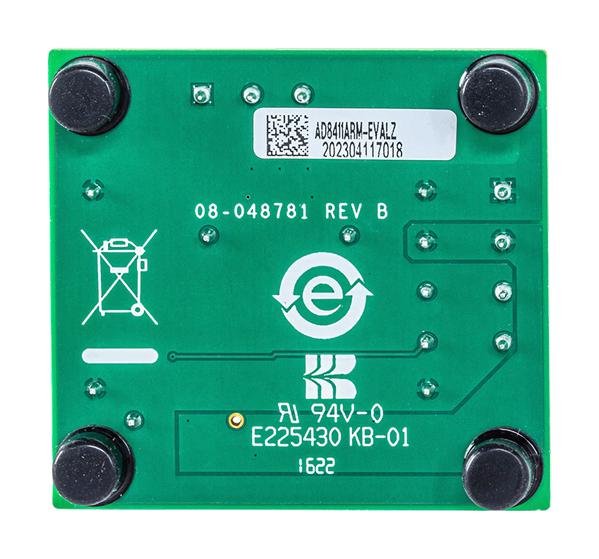

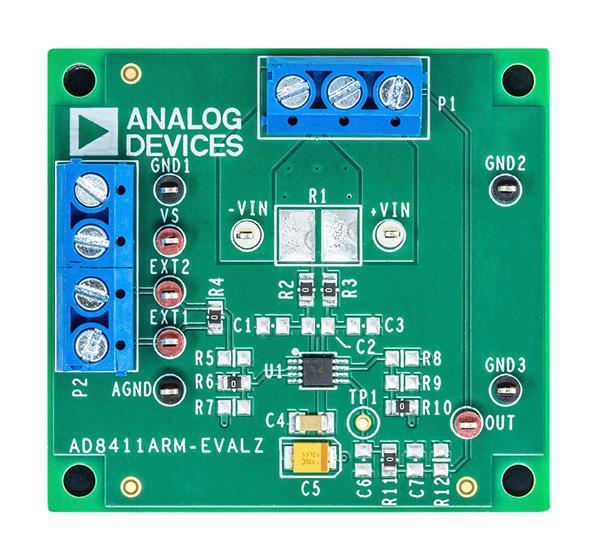

AD8411ARM-10-EVALZ is an evaluation board for AD8411A in 10-lead mini small outline package [MSOP]. The AD8411A is a high-voltage, high-bandwidth current-sense amplifier. The device features an initial gain of 50V/V, with a 2.7MHz bandwidth with a maximum ±0.15% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. The AD8411A has a minimum DC common-mode rejection ratio (CMRR) of 123 dB from ?2 V to +70 V. The AD8411A performs bidirectional current measurements across a shunt resistor in various industrial and automotive applications.
- Bidirectional operation
- 2.7MHz small signal -3dB bandwidth
- In-package Trim Core (DigiTrim�)
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | AD8411ARM-10-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3740.1 |
| 3-5 | ₹ 3701.94 |
| 5-10 | ₹ 3625.61 |
| 10+ | ₹ 3549.28 |
Bulk discount will be automatically applied during checkout based on quantity.
