Product Overview

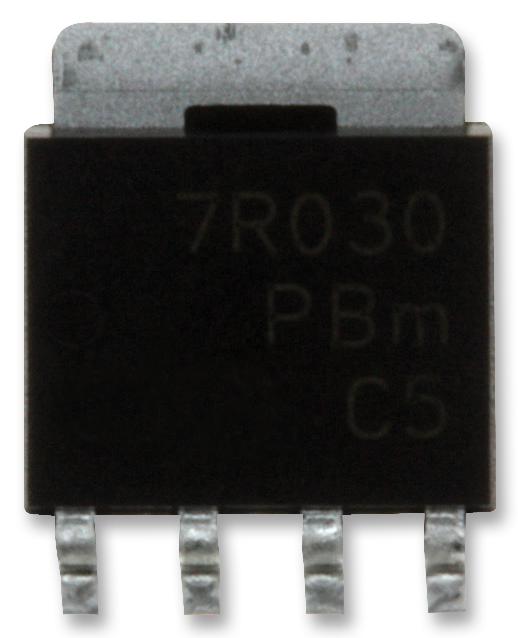

- Automotive N-channel 30V (D-S) 175°C MOSFET
- TrenchFET® Gen IV power MOSFET
- AEC-Q101 qualified
- 100% Rg and UIS tested
- Qgd/Qgs ratio <lt/> 1 optimizes switching characteristics
Product details
Technical Specifications
Continuous Drain Current Id
410A
Transistor Case Style
PowerPAK SO
Operating Temperature Max
175°C
Drain Source Voltage Vds
30V
Drain Source On State Resistance
770µohm
Transistor Mounting
Surface Mount
Gate Source Threshold Voltage Max
2V
Product Range
TrenchFET Gen IV
Other details
Brand |
VISHAY |
Part Number |
SQJA26EP-T1_GE3 |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
 |
