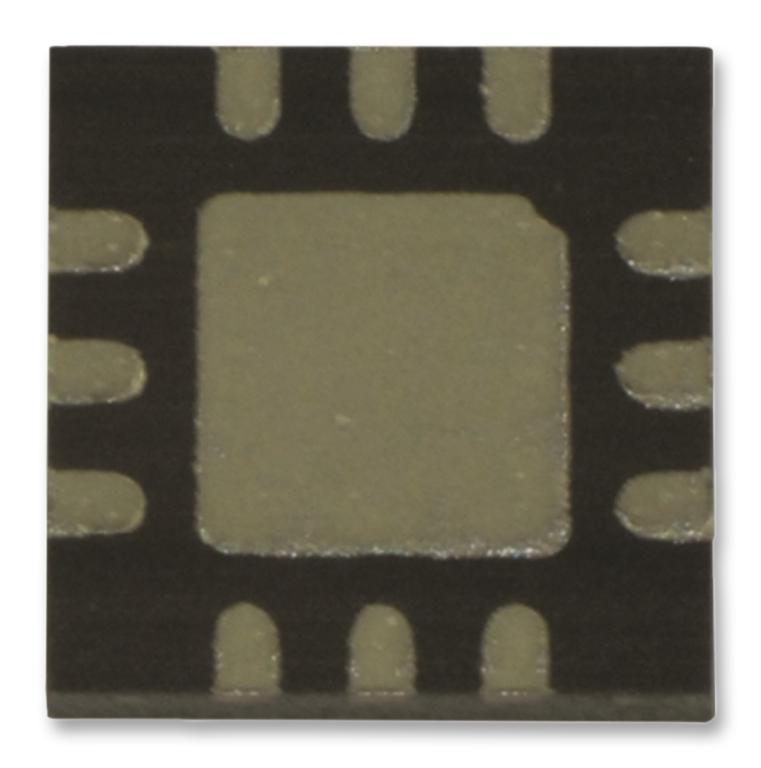

SILICON LABS EFM8BB50F8G-A-QFN12 8 Bit MCU, EFM8 Family EFM8BB50 Series Microcontrollers, 8051, 50 MHz, 8 KB, 12 Pins, QFN-EP

EFM8BB50F8G-A-QFN12 is a EFM8BB50 MCU. It is a multi-purpose line of 8-bit microcontroller with a comprehensive feature set in small packages. It offers high value by integrating advanced analogue and communication peripherals into small packages, making them ideal for space-constrained applications. With an efficient 8051 core, 5V capable I/O, precision analogue, and enhanced pulse-width modulation, the EFM8BB50 family is also optimal for embedded applications. Typical applications are LED/lighting control, industrial automation, consumer electronics, motor control, power tools, appliances, toys, personal hygiene products, battery packs, optical modules.

• Pipelined 8-bit C8051 core with 50MHz maximum operating frequency
• Up to 12 multifunction, 5V capable I/O pins, 1 x 12-bit analogue to digital converter
• Integrated temperature sensor, 3-channel PCA w/ PWM
• 3-channel PWM engine, 4 x 16bit timers, 2 x 8-bit timers, UART, SMBus/I2C
• SPI with 4 byte FIFO, priority crossbar for flexible pin mapping, 4 x configurable logic units
• 4 configurable logic units, pre-loaded UART bootloader, 128-bit unique device identifier (UUID)
• Single power supply is 1.8 to 5.5V
• 8KB flash memory, 512bytes RAM, 9 GPIO
• QFN12 package
• Temperature range from -40°C to +85°C
