Description
Product Overview

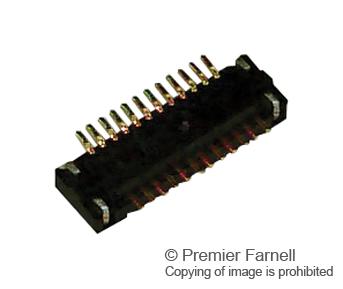

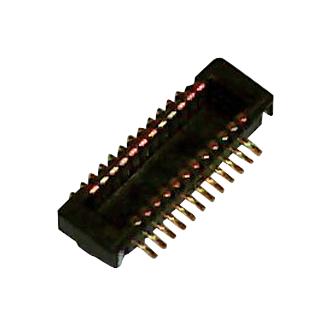

The 55909-2474 from Molex is a 0.4mm pitch dual row board-to-board SlimStack plug. This plug is made of brass material with gold material plating and gold termination plating. This plug mates with SlimStack board-to-board receptacle 51338 and 500913.
- Vertical orientation
- 24 circuits (loaded)
- Maximum durability of 30 mating cycles
- Lock to mating part
- Surface mount termination interface style
- Operating temperature range from -25°C to +85°C
- Maximum 0.3A current per contact, maximum 50V AC (RMS)/DC voltage
- Black colour resin
- With PCB retention and no breakaway
- Non stackable
Applications
Automotive, Consumer Electronics, Data / Computing, Industrial, Medical, Portable Devices
Product details
Other details
| Brand | MOLEX |
| Part Number | 55909-2474 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 247.86 |
| 3-5 | ₹ 245.33 |
| 5-10 | ₹ 240.27 |
| 10+ | ₹ 235.22 |
Bulk discount will be automatically applied during checkout based on quantity.
