Description
Product Overview

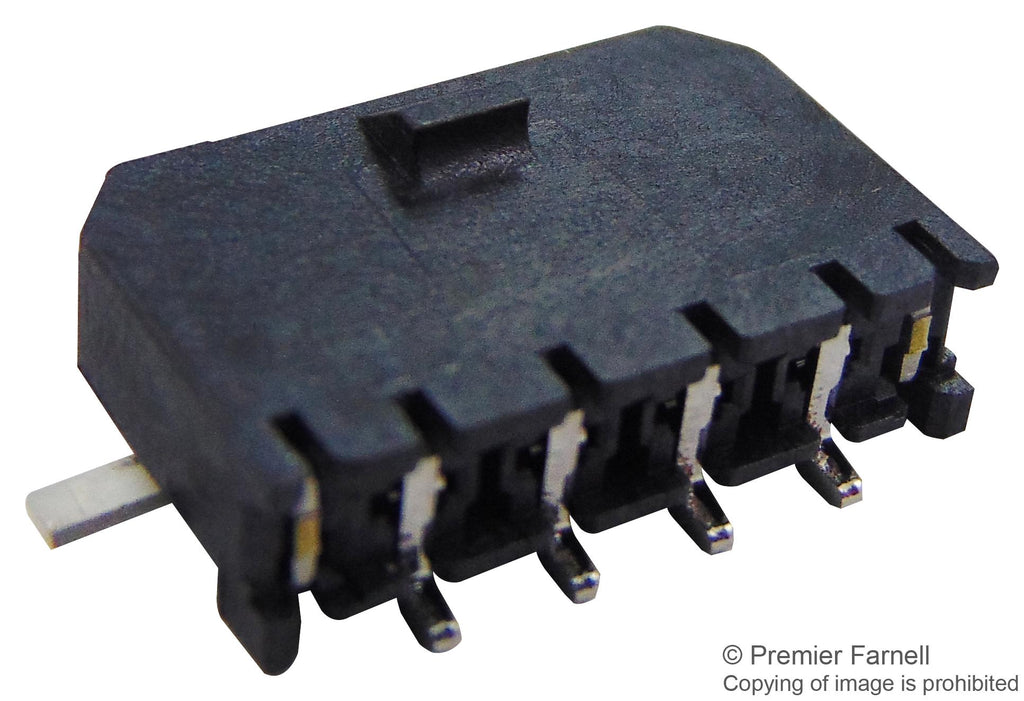

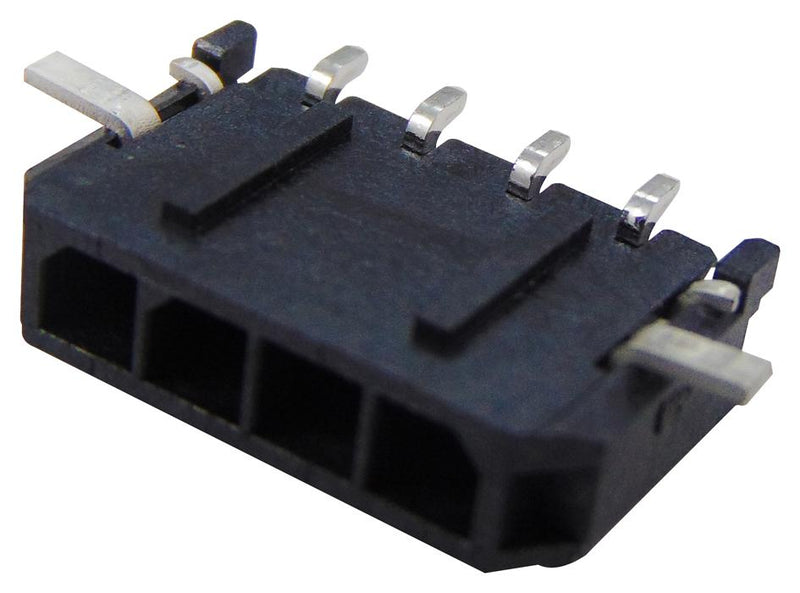

The 43650-0412 from Molex is a 43650 series black colour Micro-Fit 3.0 right angled PCB header with 3mm pitch. This single row header has 4 circuits and solder tab. It mates with 43645 Micro-Fit 3.0 receptacle housing. It is made of high temperature thermoplastic resin material. This PCB header specification covers 3mm (0.118 inch) centreline (pitch) square pin headers when mated with either printed circuit board (PCB) connector or connectors terminated with 20AWG to 30AWG wire using crimp technology. The connector is approved by CSA LR19980 and UL E29179 standards.
- Glow wire capable
- Durability of 30 mating cycles
- Flammability rating meets UL94V-0
- Mated height of 6.98mm
- Brass metal material with tin mating plating and tin termination plating
- Net weight of 0.823/g
- Operating temperature range from -40°C to 105°C
- Surface mount termination interface
- Maximum current of 5A per contact maximum voltage of 600V
Applications
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Product details
Other details
| Brand | MOLEX |
| Part Number | 43650-0412 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
