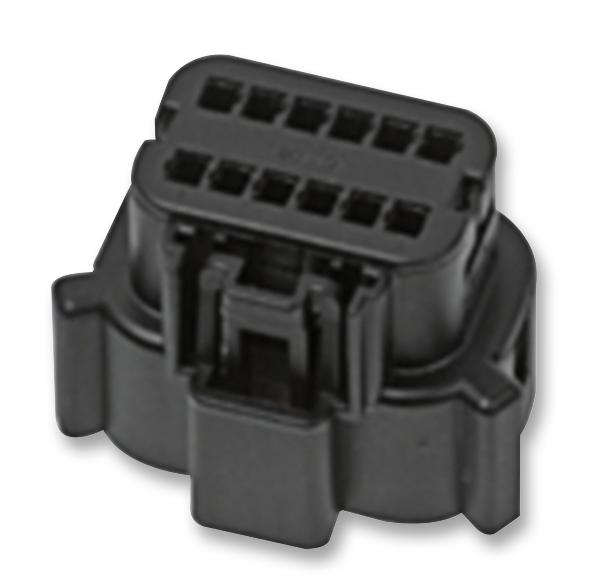

MOLEX 36792-1201 Automotive Connector Housing, Sealed, Dual Row, MX120G 36792, Receptacle, 12 Ways

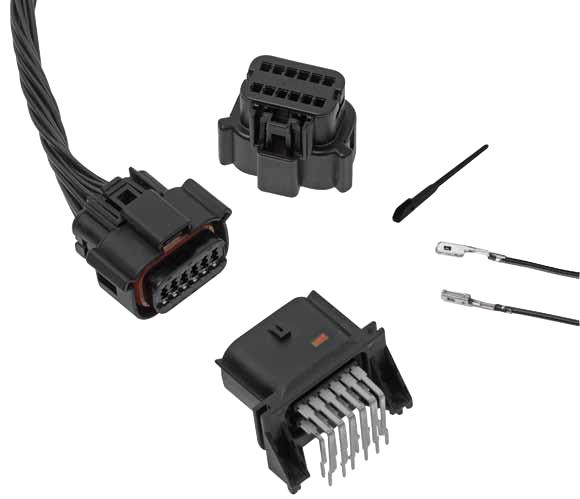

The MX120G series Sealed Connector offer space savings while providing superior design and mating features to meet the needs of environmentally challenging automotive and non-automotive applications. This connector system is a highly compact, sealed, wire-to-wire and wire-to-board family of interconnects that delivers optimal performance especially in wet, high-vibration and wide-operating-temperature conditions. Designed for rugged, harsh environment non-automotive applications, MX120G interconnect system can be extended to exterior lighting applications that include traffic and overhead street lights. The MX120G wire-to-wire and wire-to-board receptacles feature a single-piece pre-assembly comprised of a high-temperature connector housing, male silicone seal and a seal cap for strain relief - all pre-assembled and ready for easy crimp insertion.

• 0.35 to 1mm² Wire range
• 10A Current per contact
• -40 to 105°C Operating temperature range
• UL94H-B Flammability

Applications

Commercial Vehicle, Industrial, Lighting, Medical, Industrial
