Description
Product Overview

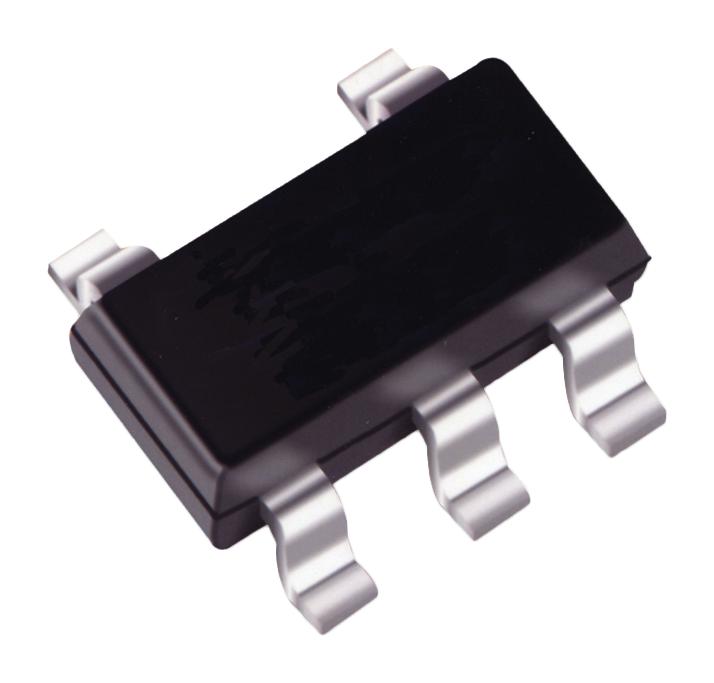

The MCP3221A5T-E/OT is a successive approximation A/D Converter with 12-bit resolution. This device provides one single-ended input with very low power consumption. Based on an advanced CMOS technology, the MCP3221 provides a low maximum conversion current and standby current of 250 and 1?A respectively. Low current consumption, make this device ideal for battery-powered and remote data acquisition applications. Communication to the MCP3221 is performed using a 2-wire, I²C compatible interface. The converter with standard (100kHz) and fast (400kHz) I²C modes. An on-chip conversion clock enables independent timing for the I²C and conversion clocks. The device is also addressable, allowing up to eight devices on a single 2-wire bus.
- ±1 LSB DNL, ±2 LSB INL maximum
- 250?A Maximum conversion current
- 5nA Typical standby current, 1?A maximum
- 22.3kSPS in I²C fast mode
- Single-ended analogue input channel
- On-chip sample and hold
- On-chip conversion clock
- AEC-Q100 Grade 1
Applications
Portable Devices, Test & Measurement, Power Management, Communications & Networking
Product details
Other details
| Brand | MICROCHIP |
| Part Number | MCP3221A5T-E/OT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
