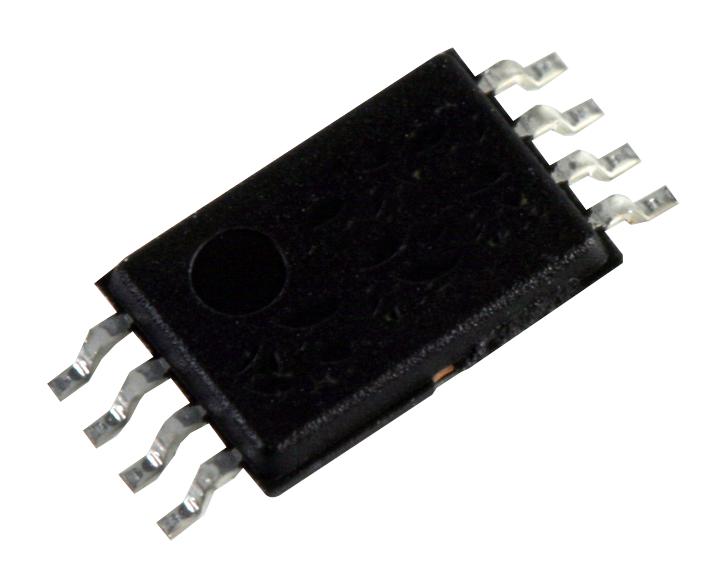

MICROCHIP AT24CM01-XHM-B EEPROM, 1 Mbit, 128K x 8bit, I2C, 1 MHz, TSSOP, 8 Pins

The AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 131,072 words of 8 bits each. The device�s cascadable feature allows up to four devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential.

• Low Voltage and Standard Voltage Operation Available
• Internally Organized 131,072 x 8
• 2-wire serial Interface
• Schmitt Triggers, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 400kHz (1.7V) and 1MHz (5V, 2.5V) compatibility
• Write Protect Pin for Hardware Data Protection
• 256-byte page write mode: partial page writes allowed
• Random and sequential read modes
• Self-timed write cycle (5ms max)
• High Reliability

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
