Description
Product Overview

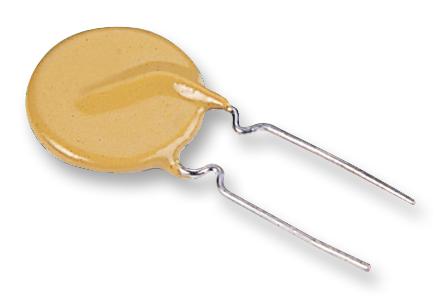

RXEF075 is a RXEF series PolySwitch radial-leaded device. The RXEF series offers low hold currents (down to 50mA) and high voltage rating (up to 72V). Typical applications include satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, IEEE 1394 ports, CD-ROMs, game machines, battery packs, phones, fax machines, analogue and digital line cards, and printers.
- Device compatible with high-volume electronics assembly
- UL recognized to UL 1434, CSA approved to CSA TIL No. CA-3A
- TUV approved to EN 60730-1, CQC approved to GB 8898, GB/T 7153, GB 14536.1
- Insulating material : cured, flame-retardant epoxy polymer; meets UL 94V-0
- Operation temperature range from -40°C to 85°C
- 72V DC voltage rating, 1.5A trip current
- 750mA holding current, 40A max fault current rating
- 15.2mm height, 10.2mm diameter, 3mm thickness
Product details
Other details
| Brand | LITTELFUSE |
| Part Number | RXEF075 |
| Quantity | Each |
| Technical Data Sheet EN |  |
