Description
Product Overview

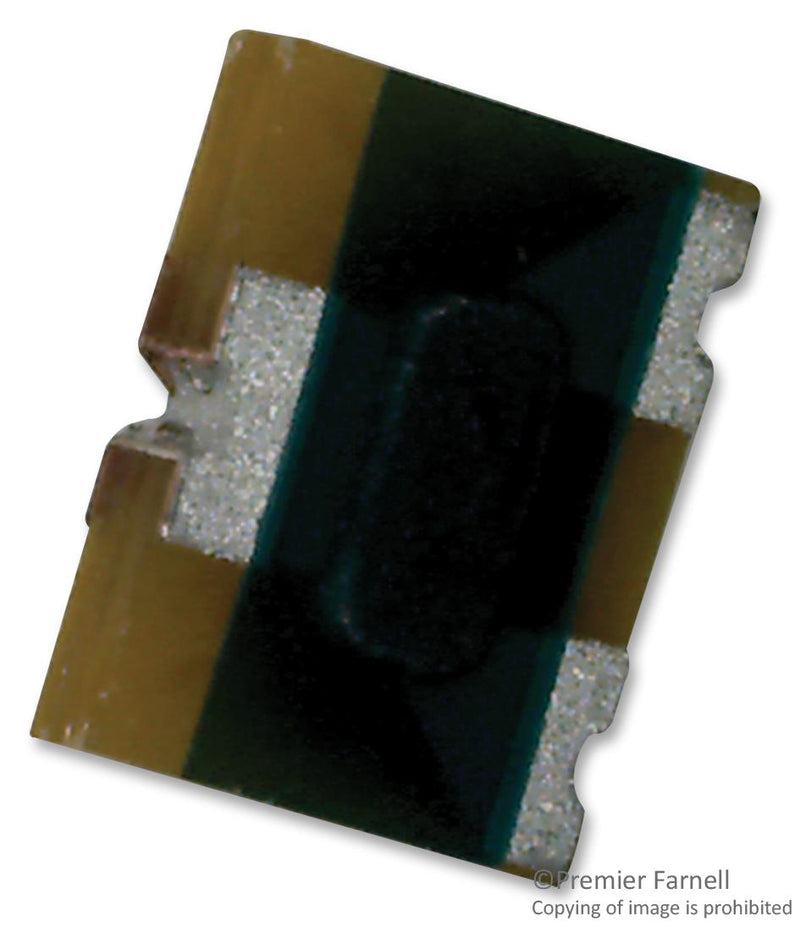

The PGB102ST23WR is a PULSE-GUARD® bi-directional surface-mount Electrostatic Discharge Suppressor. It helps to protect sensitive electronic equipment against electrostatic discharge (ESD). They supplement the on-chip protection of integrated circuitry and are best suited for low-voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. The PULSE-GUARD® PGB1 series suppressor use polymer composite materials to suppress fast-rising ESD transients (as specified in IEC 61000-4-2), while adding virtually no capacitance to the circuit.
- Extended pulse life over previous versions
- New, reduced trigger voltage
- Ultra-low capacitance
- Low leakage current
- Fast response time
- 2-lines of protection
- 500V Peak voltage (typical)
- 24VDC Maximum rated voltage
- 0.12pF Capacitance (typical)
Applications
Communications & Networking, Computers & Computer Peripherals, Consumer Electronics
Product details
Other details
| Brand | LITTELFUSE |
| Part Number | PGB102ST23WR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 124.63 |
| 3-5 | ₹ 123.35 |
| 5-10 | ₹ 120.81 |
| 10+ | ₹ 118.27 |
Bulk discount will be automatically applied during checkout based on quantity.
