Description
Product Overview

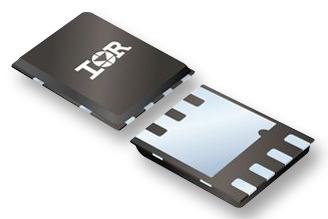

BSC500N20NS3GATMA1 is a N-channel OptiMOS 3 power-transistor. Ideal for high-frequency switching and synchronous rectification.
- Continuous drain current is 24A
- Gate source voltage is ±20V
- Power dissipation is 96W
- Excellent gate charge x R DS(on) product (FOM)
- Very low on-resistance R DS(on) is 42mohm
- Qualified according to JEDEC1 for target application
- Operating and storage temperature range from -55 to 150°C
- Available in 8 pin TDSON package
Product details
Other details
| Brand | INFINEON |
| Part Number | BSC500N20NS3GATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 326.46 |
| 3-5 | ₹ 323.13 |
| 5-10 | ₹ 316.46 |
| 10+ | ₹ 309.8 |
Bulk discount will be automatically applied during checkout based on quantity.
