Description
Product Overview

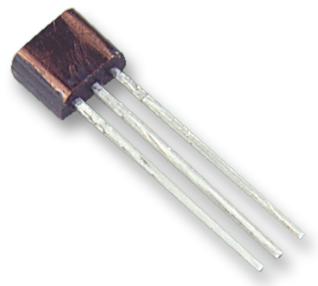

ZTX605 is a NPN silicon planar medium power Darlington transistor.
- Collector-base voltage is 140V
- Collector-emitter voltage is 120V
- Emitter-base voltage is 10V
- Peak pulse current is 4A
- Continuous collector current is 1A
- Power dissipation at Tamb=25°C is 1W
- Transition frequency is 150MHz at IC=100mA, VCE=10V, f=20MHz, Tamb = 25°C
- Input capacitance is 90pF typical at VEB=500mV, f=1MHz, Tamb = 25°C
- E-line package
- Operating and storage temperature range from -55 to +200°C
Product details
Other details
| Brand | DIODES INC. |
| Part Number | ZTX605 |
| Quantity | Each |
| Technical Data Sheet EN |  |
