Description
Product Overview

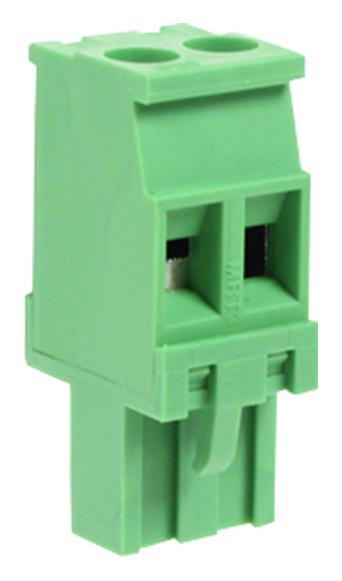

The CTB922VE/2R from Camdenboss is a 2 pole, vertical (reversed) female pluggable rising clamp terminal block with 3.81mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 26AWG to 16AWG.
- Rated voltage of 125V and rated current of 8A
- Dimension is 7.62mm x 10.36mm x 19.20mm (L x W x H)
- Polyamide (PA66) moulded material in green colour housing
- Closed header, polarised moulding and guided pin alignment
- Tin plated wire protector
- Tin plated M2 steel captive screws with 0.2Nm torque
- Working temperature range from -33°C to 120°C
- Flammability rating meets UL94 V-0
- cULus approved
Applications
Industrial
Product details
Other details
| Brand | CAMDENBOSS |
| Part Number | CTB922VE/2R |
| Quantity | Each |
| Technical Data Sheet EN |  |
