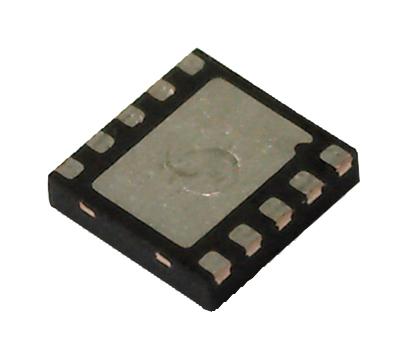

ANALOG DEVICES MAX9820ETB+T Audio Power Amplifier, DirectDrive, 95mW x 2 @ 32Ohm, 2 Channels, 2.7V to 5.5V, TDFN, 10 Pins

The MAX9820ETB+T is a DirectDrive headphone amplifier with external gain in 10 pin TDFN package. The MAX9820 Windows Vista compliant stereo headphone amplifier is designed for portable equipment where board space is at a premium. It features Maxim�s DirectDrive architecture to produce a ground referenced output from a single supply eliminating the large output coupling capacitors required by conventional single supply headphone amplifiers. The MAX9820 features an undervoltage lockout that prevents over discharging of the battery during brownout conditions, click and pop suppression that eliminates audible transients on start-up, a low power shutdown mode, thermal overload and short circuit protection. Additionally, the MAX9820 suppresses RF radiation received by input and supply traces acting as antennas and prevents the amplifier from demodulating the coupled noise.

• Supply voltage range is 2.7V to 5.5V
• Operating temperature range from -40°C to 85°C
• High RF noise rejection
• Output power is 95mW (32ohm, VDD = 5V)
• Low power shutdown reduces the supply current to 1?A
• Low 3mA (VDD = 3.3V) quiescent current

Applications

Audio, Portable Devices
