Description
AEA Ribbon Mics N22 Overview
- 1Description
- 2Near-Field Ribbon
- 33 kHz Bump
- 4Reduced Proximity Effect
- 5Active Electronics
- 6Ready for the Road
- 7Features at a Glance

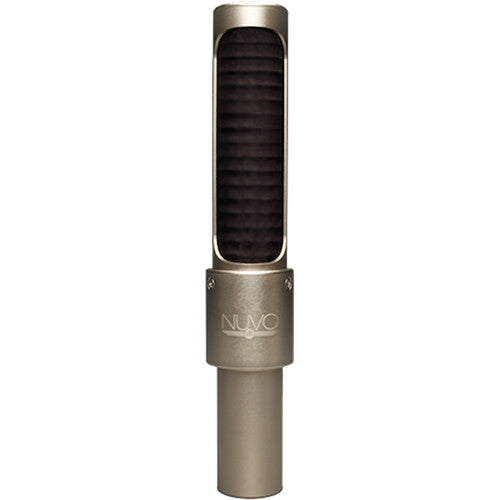

Introducing the AEA N22 NUVO series phantom-powered ribbon microphone
Offering the robust sound of a traditional side-address large-ribbon mic in a compact and lightweight form factor designed for near-field use, the AEA Ribbon Mics NUVO N22 active ribbon microphone is ideal for up-close capture of anything from vocals and nuanced acoustic instruments to loud amps and pounding drums, in the studio or on the stage. The inclusion of a custom transformer helps the NUVO N22 achieve a strong output level while retaining low-noise performance.
As a near-field ribbon, the NUVO N22 provides reduced proximity effect and balanced tonality to make it ideal for placement from 1 to 18" away from the source. Its figure-8 polar pattern exhibits the classic pickup traits and side-rejection qualities associated with ribbon mics. A standard XLR 3-pin male connector is on the mic for hookup to virtually any microphone preamp; 48V phantom power is required to power the mic's active electronics.
Near-Field Ribbon
The N22 can be positioned inches away from an instrument and retain a balanced sound with extended top-end while avoiding the room tone that can cause problems in smaller spaces or iso booths. This is what makes the N22 special.
3 kHz Bump
It exhibits a high-frequency bump at 3 kHz making it ideal for recording vocals, electric guitar, bass cabs, kick drum, acoustic guitar, and percussion. It is best to think of the N22's placement in terms of inches instead of feet.
Reduced Proximity Effect
The N22 naturally reduces proximity effect while also avoiding the room tone that can cause problems in smaller spaces or iso booths. Naturally rolling off the low-end before it hits the ribbon creates a much different sound than using electronic equalization to attenuate the low-end in post.
Active Electronics
The N22 uses the same custom transformer utilized in the AEA A440 and R84A microphones, enabling an additional 12 dB of output and a stable impedance. Though it still sounds great with any AEA ribbon-optimized preamp, it is not dependent on a high-impedance, high-gain preamp for proper use.
The extra output is a major advantage when recording quiet sources like vocals and soft acoustic guitars. The active circuitry also prevents noise and interference on long cable runs and when operating near large lighting rigs.
The extra output is a major advantage when recording quiet sources like vocals and soft acoustic guitars. The active circuitry also prevents noise and interference on long cable runs and when operating near large lighting rigs.
Ready for the Road
With increased durability and a small profile, it's no wonder that a wide range of performers use AEA's NUVO series microphones on the road. The mics are totally rugged and hold up to daily wear and tear.
From outdoor gigs at music festivals to indoor theaters, NUVO mics are the perfect companion to bring the sound of studio recordings to the live stage. With the optional NUVO windscreen, never worry about the ribbon, even at windy gigs.
From outdoor gigs at music festivals to indoor theaters, NUVO mics are the perfect companion to bring the sound of studio recordings to the live stage. With the optional NUVO windscreen, never worry about the ribbon, even at windy gigs.
Features at a Glance
- Extended top end with a ribbon�s classic warmth
- Near-field ribbon mic with reduced proximity effect
- Balanced frequency response at 1 to 18" from the source
- Compact, lightweight design with rugged durability
- Active electronics and custom transformer optimized for all preamps
- Made in the USA
UPC: 652401977490
In the Box
- AEA Ribbon Mics NUVO N22 Near-Field Phantom-Powered Ribbon Microphone
- Mic Stand Clip
- Custom Protective Mic Sleeve
- Storage Case
- Limited 1-Year Warranty, Extendable to 3 Years upon Online Registration
Table of Contents
- Description
- Near-Field Ribbon
- 3 kHz Bump
- Reduced Proximity Effect
- Active Electronics
- Ready for the Road
- Features at a Glance
AEA Ribbon Mics N22 Specs
Microphone
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Ribbon |
| Diaphragm | 2.35" / 59.69 mm |
| Polar Pattern | Figure-8 |
| Orientation | Side Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | None |
Performance
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 141 dB SPL (1 kHz, 1% THD) |
| Off-Axis Rejection |
6 dB at 60° 6 dB at 120° 0 dB at 180° |
| Impedance | 92 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | 8.3 mV/Pa at 1 kHz |
Connectivity
| Output Connectors (Analog) | 1 x XLR 3-Pin Male (on Mic) |
Power
| Operating Voltage | 48 V (Phantom Power) |
| Operating Current Consumption | 7 mA (Phantom Power) |
Physical
| Color | Silver |
| Mounting | Mic Clip/Stand Adapter (Included) |
| Dimensions | ø: 1.62 x L: 8.83" / ø: 4.11 x L: 22.43 cm |
| Weight | 12 oz / 340 g |
Packaging Info
| Package Weight | 2.255 lb |
| Box Dimensions (LxWxH) | 12.2 x 9.1 x 4.3" |
