Description

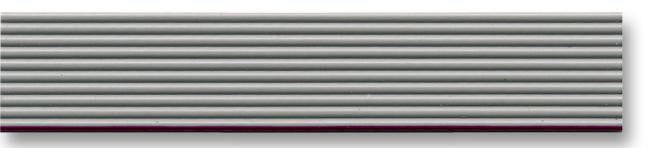

The NFCG-2815 is a 15-way IDC Ribbon Cable with grey polyvinyl chloride (PVC) insulation and 7/0.127mm tinned copper conductor. The first conductor is identified by a red leading edge. It is used in internal connection for computer, duplicator, facsimile, game, interface and many other electronic equipments.
- 2500V Spark test voltage
- 237R/km Maximum conductor resistance
- 100MR/km Minimum insulation resistance
- 45pF/m Capacitance
- 1.5µH/m Inductance
- 100R Impedance
- 4.2ns/m Propagation delay time
- 105°C Temperature rating
Applications
Computers & Computer Peripherals, Industrial
Product details
| No. of Cores | 15Core |
| Reel Length (Metric) | 30.5m |
| Conductor Material | Tinned Copper |
| Pitch Spacing | 1.27mm |
| Jacket Material | PVC |
| Voltage Rating | 300V |
| Cable Width | 19.05mm |
| Reel Length (Imperial) | 100ft |
| Product Range | - |
| Wire Gauge | 28AWG |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 7 x 0.127mm |
| Conductor Area CSA | 0.072mm² |
| Ribbon Cable Type | Flat Ribbon Cable |
Other details
| Brand | PRO POWER |
| Part Number | NFCG-2815 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
