Description

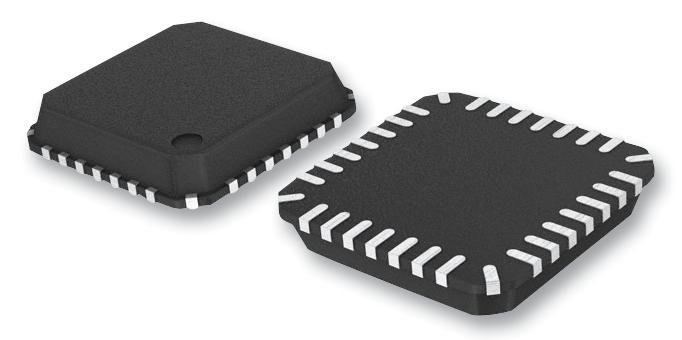

This is a CC2520RHDR RF Transceiver , 2.394GHz to 2.507GHz, DSSS, 250 Kbps, 5dBm out, -98dBm in, 1.8V to 3.8V, VQFN-28 product from TEXAS INSTRUMENTS with the model number CC2520RHDR
Product details
| Data Rate | 250Kbps |
| RF / IF Modulation | DSSS |
| Frequency Min | 2.394GHz |
| Frequency Max | 2.507GHz |
| Receiving Current | 24.8mA |
| RF IC Case Style | VQFN |
| No. of Pins | 28Pins |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.8V |
| Transmitting Current | 28.8mA |
| Output Power (dBm) | 5dBm |
| Sensitivity dBm | -98dBm |
| RF Transceiver Applications | IEEE 802.15.4 Systems, ZigBee Systems, Industrial Monitoring and Control , Automatic Meter Reading |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | CC2520RHDR |
| Quantity | Each (Supplied on Cut Tape) |
