| ₹ 1250.78 includes GST and import duties. | |
| B2B customers can avail ₹ 190.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

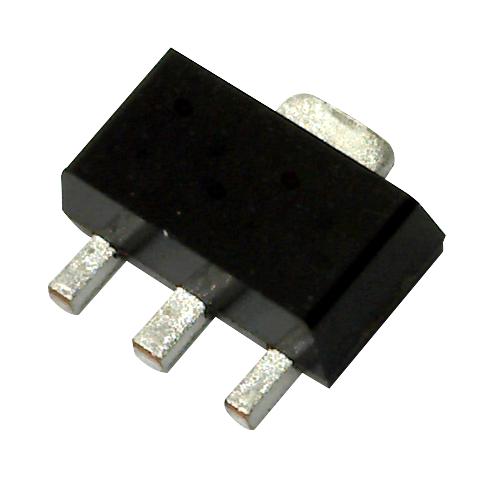

HMC789ST89ETR is a high linearity GaAs InGaP HBT gain block MMIC operating from 0.7 to 2.8GHz and packaged in an industry standard SOT89 package. Utilizing a minimum number of external components and a single +5V supply, the amplifier output IP3 can be optimized to +45dBm. The high output IP3 and high gain make the HMC789ST89E ideal for use in PA driver & pre-driver applications in Cellular/4G and fixed wireless. Applications include cellular/4G, fixed wireless & WLAN, CATV, cable modem & DBS, microwave radio & test equipment, IF & RF applications.
- Gain is 18dB typical at (TA = +25°C)
- Gain over temperature is 0.01dB typical at (TA = +25°C)
- Input return loss is 12dB typical at (TA = +25°C)
- Output return loss is 20dB typical at (TA = +25°C)
- Output power for 1dB compression (P1dB) is 23.5dBm typical at (TA = +25°C)
- Saturated output power (Psat) is 25.5dBm typical at (TA = +25°C)
- Noise figure is 3.8dB typical at (TA = +25°C)
- Supply current (Idd) is 125mA typical at (TA = +25°C)
- Operating temperature range from -40°C to 85°C, SOT89 package
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | HMC789ST89ETR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1225.76 |
| 3-5 | ₹ 1213.26 |
| 5-10 | ₹ 1188.24 |
| 10+ | ₹ 1163.23 |
Bulk discount will be automatically applied during checkout based on quantity.
