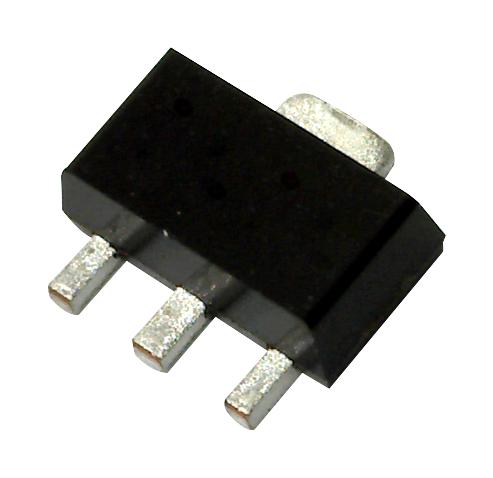

ANALOG DEVICES HMC639ST89ETR RF Amplifier, 200MHz to 4GHz, 10dB, 5V, -40°C to 85°C, SOT-89-3

HMC639ST89ETR is a GaAs pHEMT, high linearity, low noise, wideband gain block amplifier covering 0.2 to 4.0GHz. This amplifier can be used as either a cascadable 50 Ohm gain stage, a PA Pre-driver, a low noise amplifier, or a gain block with up to +22dBm output power. This versatile gain block amplifier is powered from a single +5V supply and requires no external matching components. The internally matched topology permits this amplifier to be readily ported between virtually any printed circuit board material, regardless of its dielectric constant, thickness, or composition. Applications include cellular / PCS / 3G, WiMAX, WiBro, & fixed wireless, CATV & cable modem, microwave radio, IF and RF sections.

• Frequency range from 0.7 to 2.2GHz
• Gain is 13dB typical at (TA = +25°C)
• Gain variation over temperature 0.01dB/°C typical at (TA = +25°C)
• Input return loss is 12dB typical at (TA = +25°C)
• Output return loss is 12dB typical at (TA = +25°C)
• Reverse isolation is 20dBm typical at (TA = +25°C)
• Output power for 1dB compression is 21dB typical at (TA = +25°C)
• Output third order intercept is 38dBm typical at (TA = +25°C)
• Supply current is 110mA typical at (TA = +25°C)
• Operating temperature range from -40 to +85°C, SOT89 package
