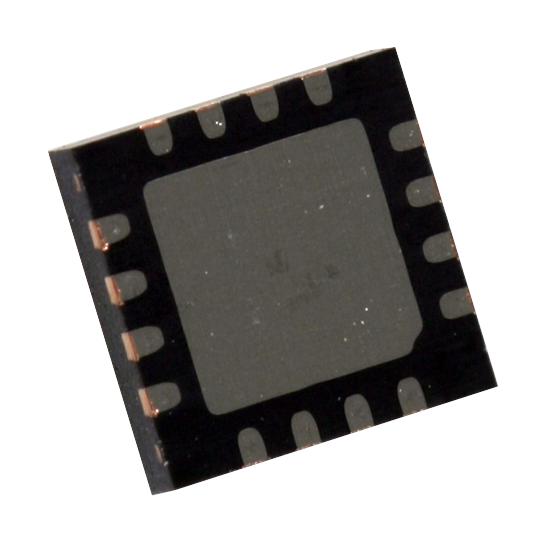

ANALOG DEVICES HMC1063LP3E RF Mixer, 24GHz to 28GHz, -40°C to 85°C, QFN-EP-16

HMC1063LP3E is a compact I/Q MMIC mixer. It can be used as either an image reject mixer or a single sideband upconverter. The mixer utilizes two standard Hittite double-balanced mixer cells and a 90-degree hybrid fabricated in a GaAs Schottky diode process. A low-frequency quadrature hybrid was used to produce a 1000MHz LSB IF output. This product is a much smaller alternative to hybrid-style image reject mixers and single sideband upconverter assemblies. It eliminates the need for wire bonding and allows the use of surface-mount manufacturing techniques. Applications include point-to-point and point-to-multi-point radio, military radar, EW & ELINT, satellite communications, and sensors.

• RF frequency range from 24 to 27GHz
• LO frequency range from 21 to 30GHz
• Conversion gain is -9.5dB typical at (TA = +25°C)
• LO to RF isolation is 42dB typical at (TA = +25°C)
• IP3 (input) is 18dBm typical at (TA = +25°C)
• Amplitude balance is 1dB typical at (TA = +25°C)
• Phase balance is -2deg typical at (TA = +25°C)
• Operating temperature range from -40°C to +85°C
• 16-lead SMT package
