| ₹ 8346.24 includes GST and import duties. | |
| B2B customers can avail ₹ 1272.8 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

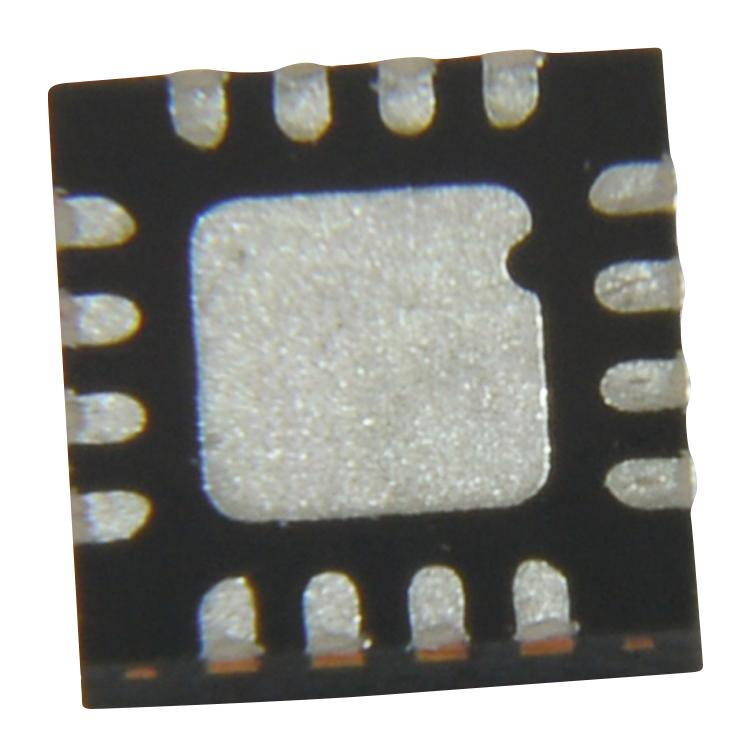

ADL8108ACPZN is a highly integrated, 1GHz to 8GHz, low noise amplifier (LNA). On-chip features include input and output AC coupling capacitors, an integrated bias inductor, an integrated temperature sensor, and an enable or disable pin (VPD). Typical gain, output power 1dB compression (OP1dB), third-order intercept point (OIP3), second-order intercept point (OIP2), and noise figure are 20dB, 22dBm, 35.5, 42dBm, and 1dB, respectively, from 3GHz to 4.5GHz. The nominal operating current (IDQ), which can be adjusted, is 90mA operating from a 5V supply voltage (VDD). Operation at 3V is also supported. The ADL8108 is fabricated on a pseudomorphic high electron mobility transistor (pHEMT) process. This device is housed in 3mm x 3mm, 16-lead LFCSP package and is specified for operation over an extended temperature range of -55°C to +125°C. Applications include telecommunications, test instrumentation and military.
- Single positive supply: 5V and IDQ of 90mA nominal
- RBIAS drain current adjustment pin
- Integrated temperature sensor
- Integrated enable and disable function
- OIP3: 35.5 dBm typical from 1GHz to 4.5GHz
- Noise figure is 1dB typical from 3GHz to 6GHz
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADL8108ACPZN |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 8179.32 |
| 3-5 | ₹ 8095.85 |
| 5-10 | ₹ 7928.93 |
| 10+ | ₹ 7762.0 |
Bulk discount will be automatically applied during checkout based on quantity.
