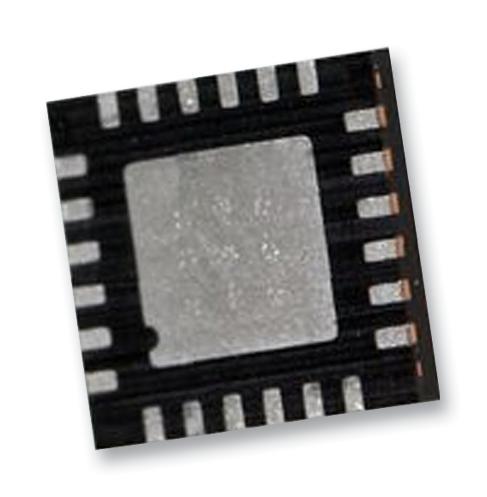

ANALOG DEVICES ADL7078ACPZN Low Noise Amplifier, 13 dB Gain, 4.4 dB Noise, 1 GHz to 20 GHz, 4.75 to 5.25 V, LFCSP-EP-24

ADL7078ACPZN is a 1GHz to 20GHz low noise amplifier (LNA) with 32dBm RF input power survivability. AC-coupling capacitors and bias inductors are integrated, facilitating a compact printed circuit board (PCB) footprint. The ADL7078 has a gain of 13dB, an output power for 1dB compression (OP1dB) of 16.5dBm, a typical output third-order intercept (OIP3) of 28dBm, and a noise figure of 4.4dB from 2GHz to 18GHz. This LNA operates on a 5V supply voltage (VDD) and has a nominal quiescent current (IDQ) of 175mA. It is fabricated on a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT) process. It is used in applications such as electronic warfare, test and measurement equipment, and satellite communications.

• Integrated AC coupling capacitors and bias inductor
• RBIAS drain current adjustment pin
• Power added efficiency is 7.6% typical at (2GHz to 18GHz, VDD = 5V, IDQ= 175mA)
• Supply current (IDQ) is 175mA typical at (RBIAS = 698 ohm, and TCASE = 25°C)
• RBIAS current is 4.5mA typical at (RBIAS = 698 ohm, and TCASE = 25°C)
• Return loss (S11) is 17dB typ at (VDD = 5 V, IDQ= 175 mA, RBIAS = 698 ?, and TCASE = 25°C)
• Return loss (S22) is 16dB typ at (VDD = 5 V, IDQ= 175 mA, RBIAS = 698 ?, and TCASE = 25°C)
• Operating temperature range from -40°C to +85°C
• 24-Lead LFCSP package
