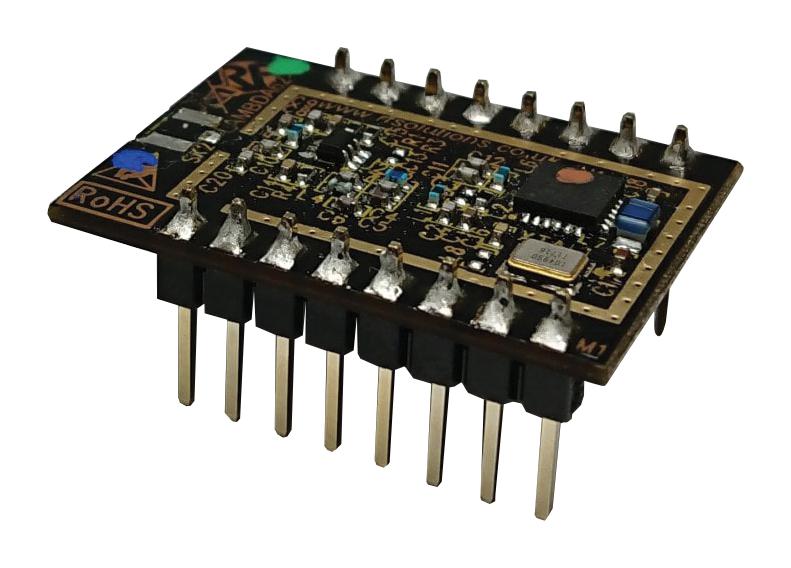

RF SOLUTIONS LAMBDA80-24D RF Transceiver Module, FM Modulation, 2Mbps, 2.5GHz, -132dBm, 1.8V to 3.7V, SPI

The LAMBDA80 RF module is an extremely high performance, cost effective radio module featuring the Semtech SX1280 LoRa� long range providing ultra-long range, spread spectrum communication and high interference immunity within minimal current consumption operating at the only world wide acceptable 2.4GHz band. This module including crystal, impedance matching network and track layout provide a simple digital interface and direct antenna connection. This enables a plug in RF solution with maximum efficiency. Programming of the module is via SPI interface.

• Suitable for RF alarms, sensor networks, meter reading, environmental sensors, building control & automation and agricultural applications
• Long Range 2.4GHz RF Module
• Integrated LoRa� Transceiver Semtech SX1280
• Highly efficient integral impedance matching network
• Provides Full Functionality of the RFIC
• High sensitivity: down to -132 dBm
• RF Data Rate: FSK upto 2.02Mbps , LoRa upto 476bps
• Transmit power +12.5 dBm at 24mA
• Supply Voltage 1.8 - 3.7V
• Rx Receive Current as low as 4.8mA
• Small Form Factor: 23mm x 20mm
• LoRa®, FLRC, (G)FSK supported modulations
• Low energy consumption, On-chip DC/DC
• Programmable bit rate
• Excellent blocking immunity
• BLE PHY layer compatibility
• Ranging Engine, Time-of-flight function
• CE Compliant & �Modular� FCC Certification Pending
