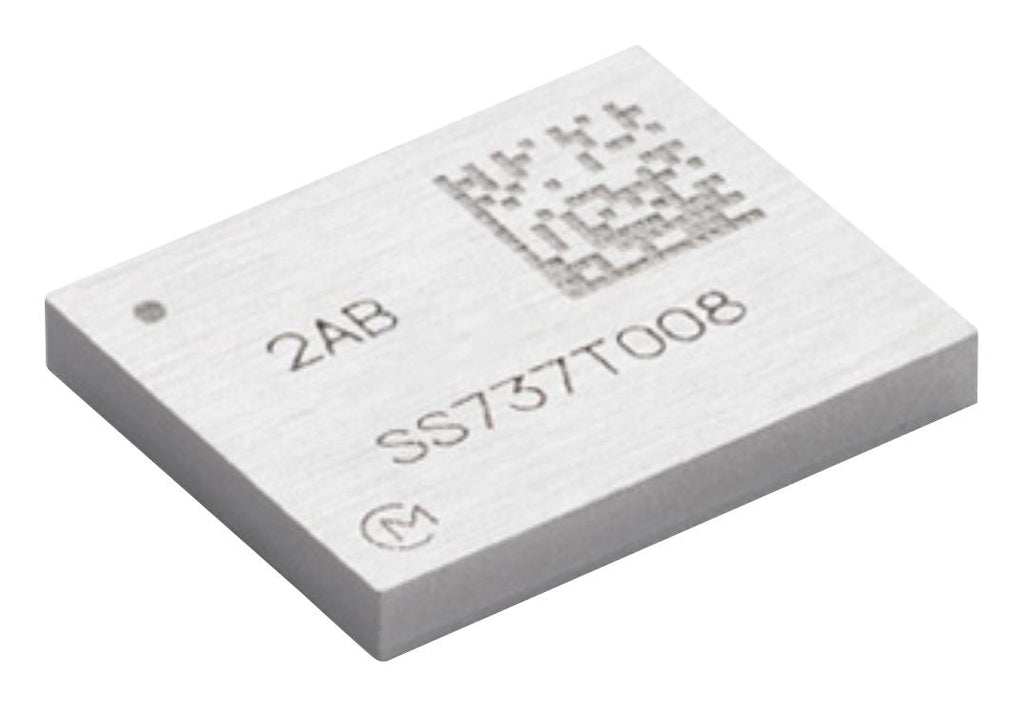

LBUA5QJ2AB-828 Type2AB module is designed as ultra-small, high quality and lower power consumption UWB module. Ideally suited for small, battery operated IoT devices and applications. Hostless module Integrated Nordic IC / nRF52840 which also have Bluetooth Low Energy function for waking up UWB and updating FW.
- UWB Ch 5 and 9 + Bluetooth LE 2.4GHz, Qorvo DW3110/3120 UWB chip set
- FCC/IC/TELEC reference certified, integrated 3-axis sensor for saving battery
- Reference clock for UWB and MCU are embedded, 75% less square area than CoB solution
- Frequency, Tx power and antenna delay are calibrated for each device
- ARM Cortex-M4 CPU core, 1MB / 256KB flash / RAM
- Operating temperature range from -40 to 85°C
- SMT mounting, UWB + Bluetooth Low energy technology
- Dimension is 10.5mm � 8.3mm � 1.44mm maximum
- Maximum supply voltage is 3.6V for VDD1, VDD2 and VDDMCU, 5.5V for VUSB
- USB, UART ,SPI , I2C host interface
Other details
| Brand |
MURATA |
| Part Number |
LBUA5QJ2AB-828 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
