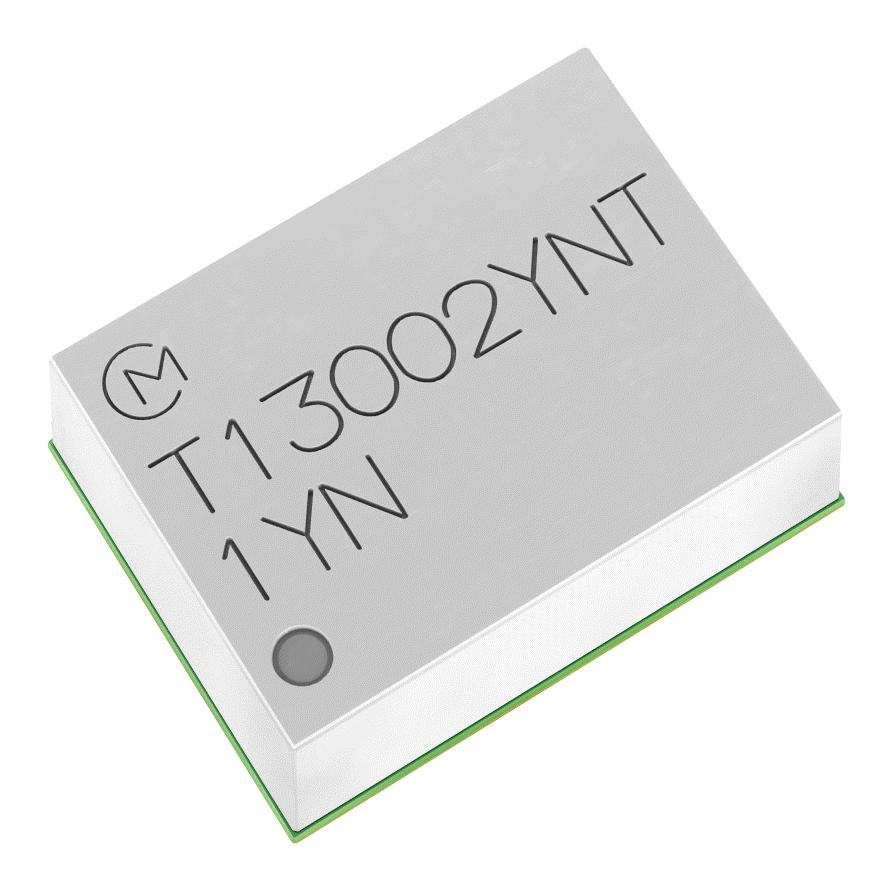

MURATA LBEE5KL1YN-814 RF Transmitter, 2.4835 GHz, PCM/SDIO/UART, Sensitivity -95 dBm, 3 V to 4.8 V

LBEE5KL1YN-814 is a Type 1YN shielded ultra small Wi-Fi® 11b/g/n + Bluetooth® 5.2 module. Type 1YN is a small and high performance module based on Infineon CYW43439 combo chipset which supports Wi-Fi® 802.11b/g/n + Bluetooth® 5.2 BR/EDR/LE up to 65Mbps PHY data rate on Wi-Fi® and 3Mbps PHY data rate on Bluetooth®. The WLAN section supports SDIO v2.0 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data. The CYW43439 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth® collaboration is optimized for maximum performance. Type 1YN module is packaged in an impressively small shielded form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more.

• 2.4GHz Wi-Fi® + Bluetooth® module
• Dimension is 6.95 x 5.15 x 1.1mm
• 3.2V to 4.2V supply voltage
• FCC/IC certified
• Operating temperature range from -30°C to 70°C
