The LQH43P_26 series wire wound Chip Coil/Power Inductor used for general electronics equipment design.
- Magnetic shield of magnetic powder in resin
- 1MHz Test voltage
- -40 to 85°C Operating temperature range
Warnings Do not use products beyond the rated current as this may create excessive heat.
Other details
| Brand |
MURATA |
| Part Number |
LQH43PN2R2M26L |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
![Murata LQH43PN2R2M26L LQH43PN2R2M26L Wirewound Inductor 2.2 µH 0.042 ohm 45 MHz 2.3 A 1812 [4532 Metric] LQH43P_26](http://www.tanotis.com/cdn/shop/products/a2c046ab6e80febc119f259c630f011d_cfed66af-7d29-44ec-8b99-be3525d36213_{width}x.jpg?v=1650984074)
![Murata LQH43PN2R2M26L LQH43PN2R2M26L Wirewound Inductor 2.2 µH 0.042 ohm 45 MHz 2.3 A 1812 [4532 Metric] LQH43P_26](http://www.tanotis.com/cdn/shop/products/79a8fbd0c451747b150d818c7ac0e431_4b638983-a82b-4498-9857-2ec9f34e9ee9_{width}x.jpg?v=1651135245)

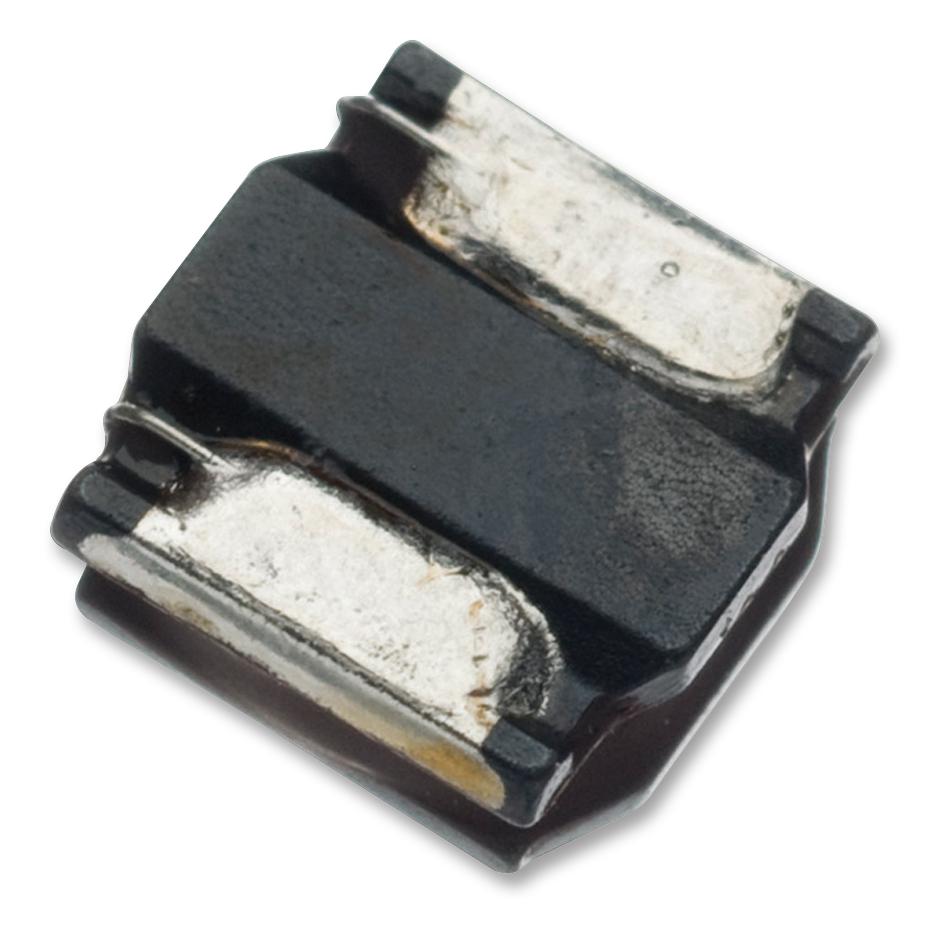

![Murata LQH43PN2R2M26L LQH43PN2R2M26L Wirewound Inductor 2.2 µH 0.042 ohm 45 MHz 2.3 A 1812 [4532 Metric] LQH43P_26](http://www.tanotis.com/cdn/shop/products/a2c046ab6e80febc119f259c630f011d_cfed66af-7d29-44ec-8b99-be3525d36213_1024x.jpg?v=1650984074)

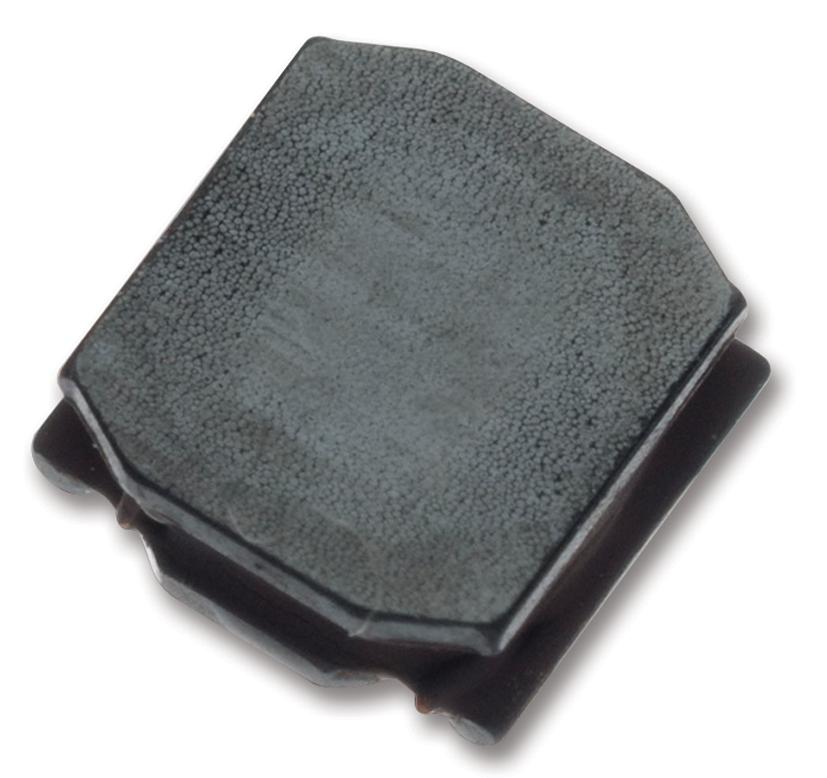

![Murata LQH43PN2R2M26L LQH43PN2R2M26L Wirewound Inductor 2.2 µH 0.042 ohm 45 MHz 2.3 A 1812 [4532 Metric] LQH43P_26](http://www.tanotis.com/cdn/shop/products/79a8fbd0c451747b150d818c7ac0e431_4b638983-a82b-4498-9857-2ec9f34e9ee9_1024x.jpg?v=1651135245)
