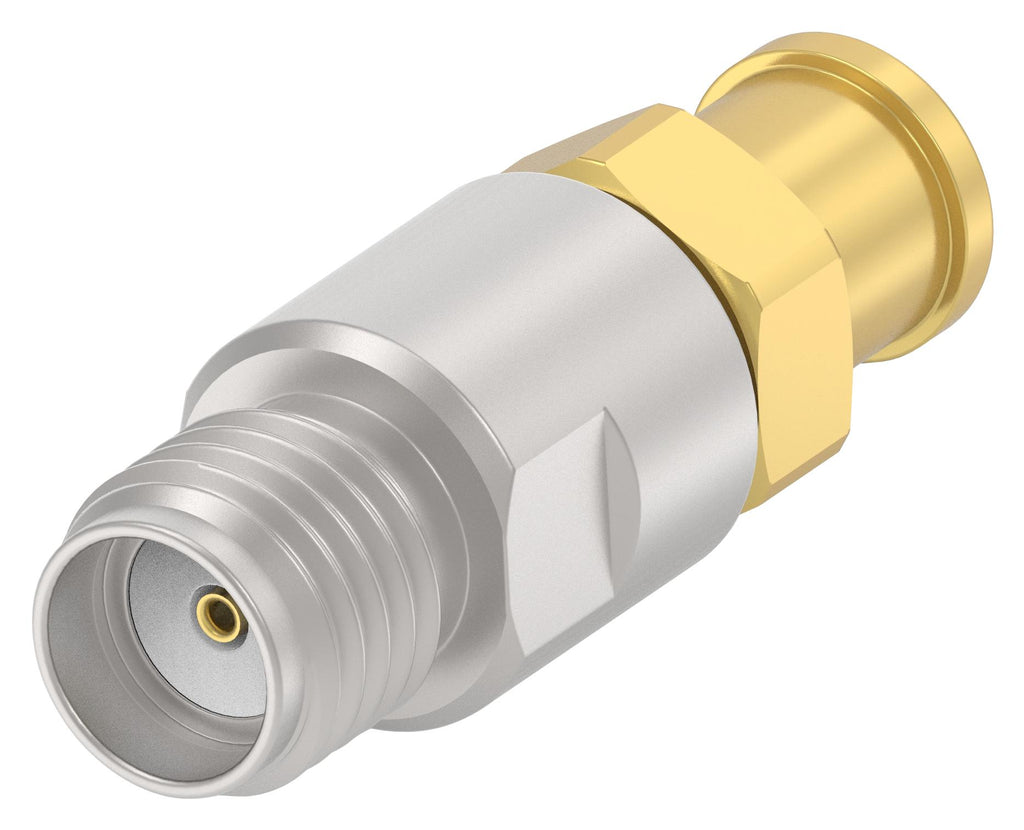

EP-SMA 27GHz RF connectors provide low insertion loss, industry leading voltage standing wave ratio (VSWR) and other mechanical and electrical functions to meet the needs of 5G, ATE, bench top, module, wireless devices and radar in test and measurement, AD&M and electrical & electronic components industries. With the same footprint as SMA-6GHz, 12GHz, 18GHz solutions, there is typically no need to change the layout of your customer's applications to allow higher frequencies of up to 27GHz or higher electrical SMA performance. Target markets include wireless, test & measurement, aerospace and defence.
- Industry leading SMA performance
- VSWR and insertion loss performance is superior to previous-generations of SMA-6GHz/12GHz/18GHz
- Economic upgrade solution
- 500 mating cycles per EIA-364-9
- No discontinuities of 0.1microsecond or longer duration vibration per IEC 61169-1
- Operating frequency of 27GHz, nominal impedance of 50 ohm
- 0.1*SQRT(f) dB insertion loss
Product details
| Connector Type:
SMA Coaxial
|
| Connector Body Style:
Straight Jack
|
| Coaxial Termination:
Solder
|
| Impedance:
50ohm
|
| Coaxial Cable Types:
0.086" Semi Rigid
|
| Contact Material:
Beryllium Copper
|
| Contact Plating:
Gold Plated Contacts
|
| Frequency Max:
27GHz
|
| Connector Mounting:
Cable Mount
|
| Product Range:
-
|
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
2081885-1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
