Description

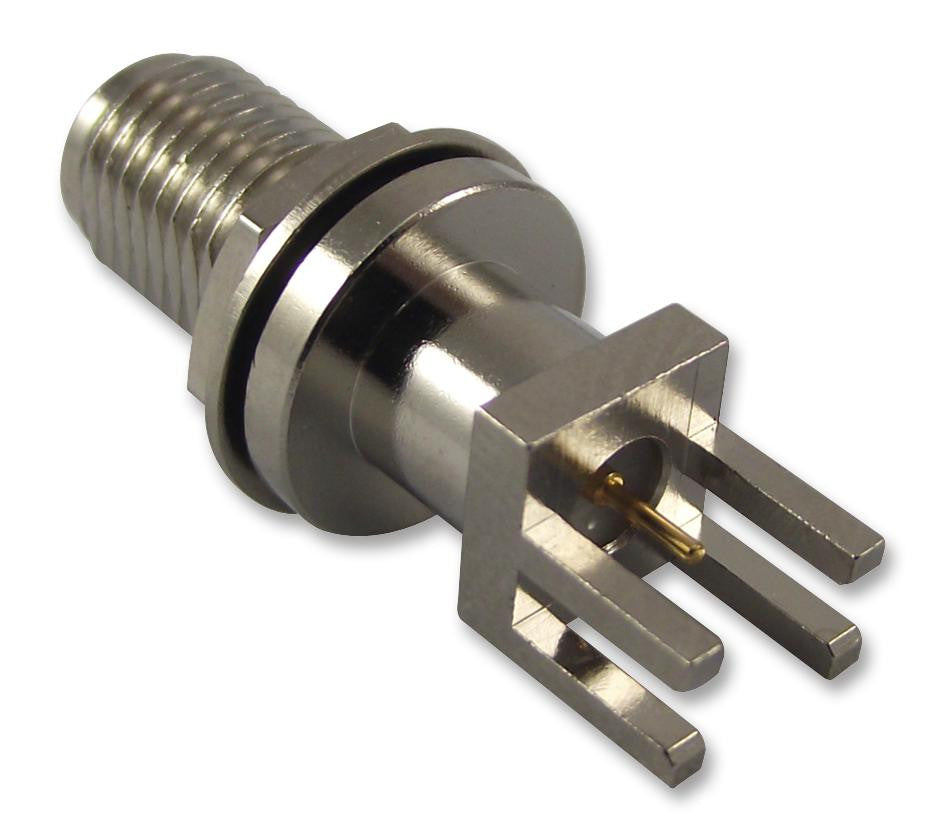

The MC000244 is an IP67 SMA Bulkhead Jack made of nickel plated brass body with beryllium copper centre contacts as per ASTM B196 UNS C173000 standard and PTFE insulation as per ASTM D1457 and ASTM D1710 standard. This RF/coaxial connector has edge mount. Interface in accordance with MIL-STD-348A standard.
- 50R Impedance
- 6GHz Frequency range
- 500V Maximum working voltage
Applications
Communications & Networking, Aerospace, Defence, Military
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | - |
| Connector Mounting | PCB Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | MULTICOMP |
| Part Number | MC000244 |
| Quantity | Each |
| Technical Data Sheet EN |  |
