Description

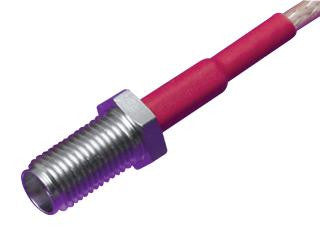

The 73251-0930 is a bulkhead SMA Coaxial Jack for RG-174, RG-188 and RG-316 cable, with gold-plated beryllium copper contacts, crimp termination and cable mounting. This 73251 series jack ensures connector will not decouple in vibration intensive applications, space saving vertical mating. The SMA RF connector designed for mode-free operation from DC to 18GHz, SMA connector ensures a high degree of mechanical strength and durability. The SMA connector is a high-performance subminiature connector for microwave frequencies. The threaded coupling insures uniform contact of the outer conductors, which enables the SMA to minimize reflections and attenuation at higher frequencies while providing a high degree of mechanical strength and durability.
- Subminiature design - Space-saving vertical mating
- Threaded coupling - Ensures connector will not decouple in vibration intensive applications
Applications
Aerospace, Defence, Military, Communications & Networking, Industrial, Medical, Sensing & Instrumentation
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | Crimp |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | RG174A, RG188A, RG316 |
| Impedance | 50ohm |
| Product Range | SMA Series |
| Frequency Max | 18GHz |
Other details
| Brand | MOLEX |
| Part Number | 73251-0930 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
