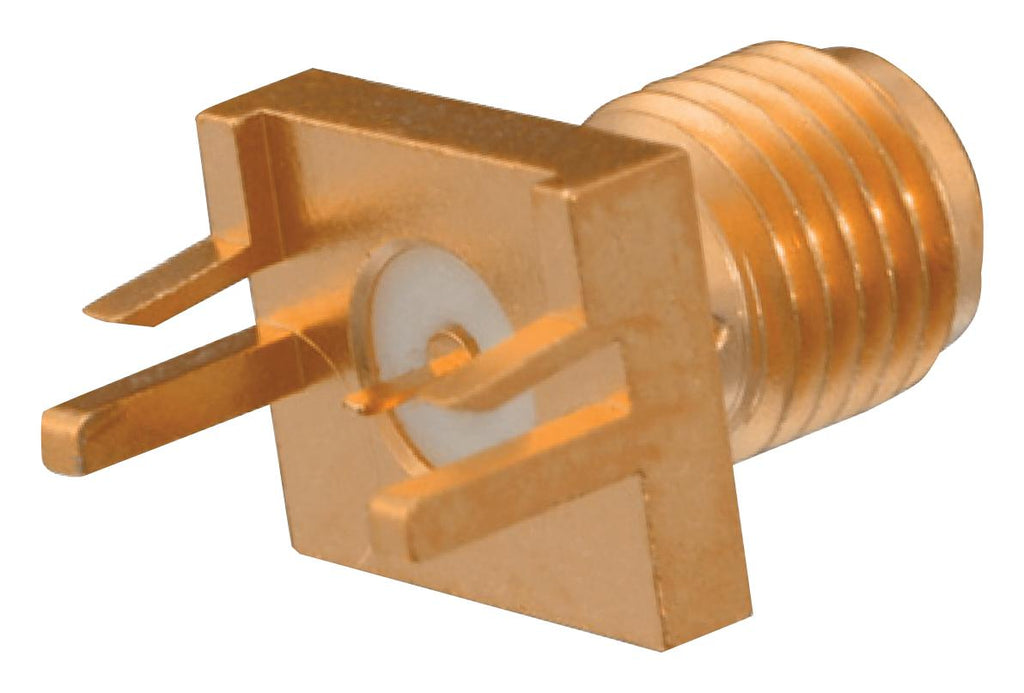

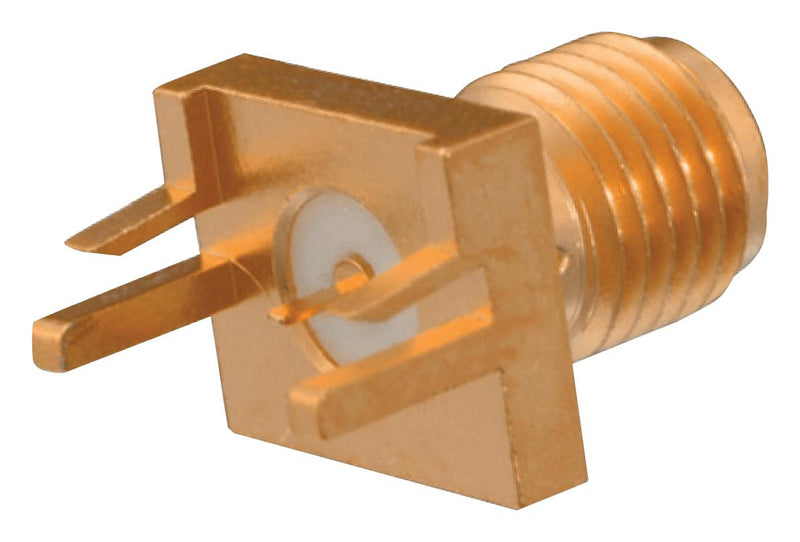

This is a RF / Coaxial Connector, Tab Contact, SMA Coaxial, Straight Jack, Board Edge / End Launch, 50 ohm product from JOHNSON - CINCH CONNECTIVITY with the model number 142-1701-871
Product details
| Connector Type |
SMA Coaxial |
| Connector Body Style |
Straight Jack |
| Coaxial Termination |
Board Edge / End Launch |
| Impedance |
50ohm |
| Coaxial Cable Types |
- |
| Contact Material |
Beryllium Copper |
| Contact Plating |
Gold Plated Contacts |
| Frequency Max |
18GHz |
| Connector Mounting |
PCB Mount |
| Product Range |
SMA Self Fixture End Launch Series |
Other details
| Brand |
JOHNSON - CINCH CONNECTIVITY |
| Part Number |
142-1701-871 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
