Description

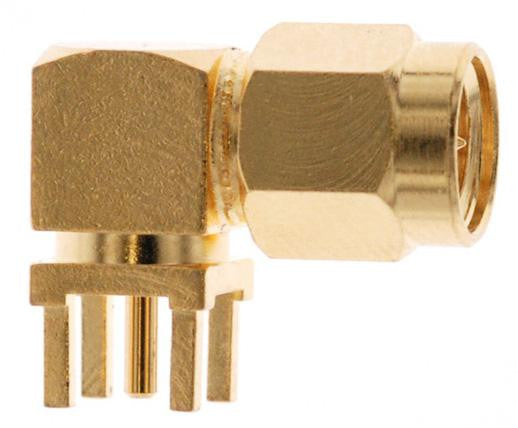

The 901-9894-RFX is a RF Connector, SMA series, SMA right angle PCB Plug with gold-plated brass contacts and solder contact termination. Body made up of brass with gold-plated finish and PTFE insulator. Using a threaded interface, SMA 50ohm connector is semi-precision units that provide excellent electrical performance and outstanding mechanical durability. SMA connector offers high performance in a compact design. SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Designed to accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.
- Lightweight, compact and vibration-proof design
- Threaded coupling mechanism
- Standard polarity
- Standard polarity
- 5000MR Insulation resistance
- 100 Mating cycles
- -65 to 165�C Temperature range
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Computers & Computer Peripherals, Test & Measurement
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | PCB Mount |
| Connector Body Style | Right Angle Plug |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 18GHz |
Other details
| Brand | AMPHENOL RF |
| Part Number | 901-9894-RFX |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
