Description

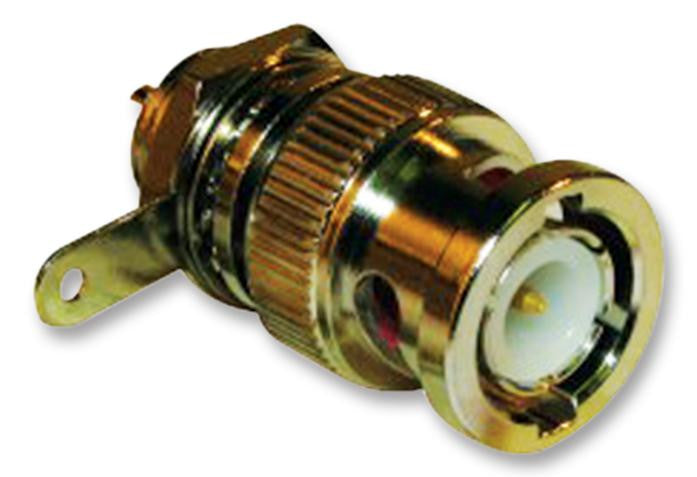

The 112420 is a straight solder BNC Plug with gold-plated brass contacts. This connector is made of brass with nickel finish and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50R BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
- Bulkhead-front mount
- Standard polarity
- 5000MR Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | BNC Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Bulkhead Plug |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 4GHz |
Other details
| Brand | AMPHENOL CONNEX |
| Part Number | 112420 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
