Description

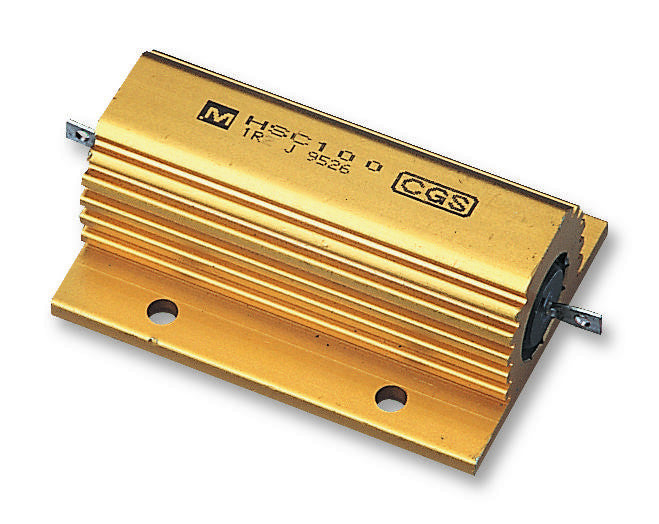

The TE Connectivity HSC100 series are wirewound resistors with aluminium housing. These are extremely stable, high quality wirewound resistors capable of dissipating high power in a limited space with relatively low surface temperature. The power is rapidly dissipated as heat through the aluminium housing to specified heat sink. These standard and custom designed aluminium housed resistors are used in general purpose applications such as power supplies, power generation and in traction industry.
- High power dissipation of 100W (with heat sink)
- Resistance value ranges from 0.05ohm to 100Kohm
- Working voltage is 1900V
- Low inductance
- �10%, �5%, �3%, �2%, �0.5% & �0.25% tolerance
- Temperature coefficient is 50ppm/�C(below 100R), 30ppm/�C( above 100R)
- Dimensions is H= 26mm, W= 47.5mm, L= 65.5mm with 35mm x 37mm fixing centres
Applications
Industrial, Consumer Electronics, Portable Devices, Power Management
Product details
| Temperature Coefficient | � 50ppm/�C |
| Power Rating | 100W |
| Resistance | 4.7ohm |
| Resistance Tolerance | � 5% |
| Resistor Element Type | Wirewound |
| Product Range | HSC Series |
| Resistor Terminals | Solder Lug |
| Voltage Rating | 1.9kV |
Other details
| Brand | CGS - TE CONNECTIVITY |
| Part Number | HSC1004R7J |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
